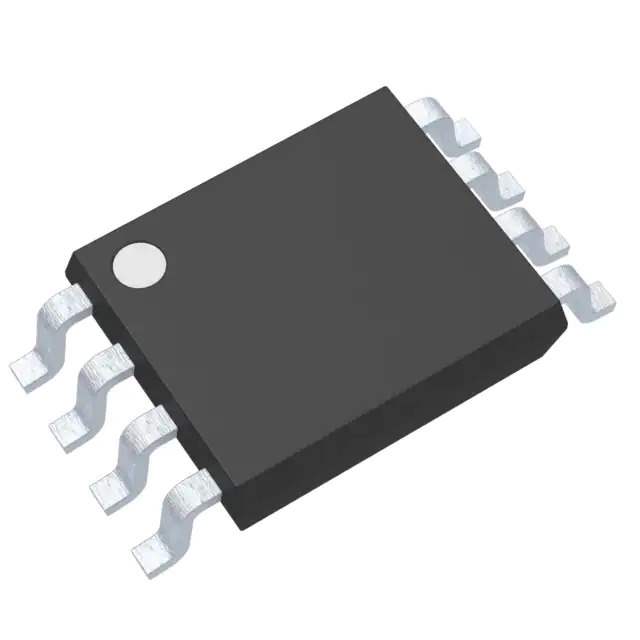

74HCT3G14DC Real Image
Same model may have multiple batches, images only for reference.

74HCT3G14DC

Part No 74HCT3G14DC
Manufacturer Nexperia USA Inc.
Catalog Logic - Gates and Inverters
Description IC INVERT SCHMITT 3CH 3IN 8VSSOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Logic - Gates and Inverters
Mfr Nexperia USA Inc.
Series 74HCT
Package Bulk
Product Status Active
Logic Type Inverter
Number of Circuits 3
Number of Inputs 3
Features Schmitt Trigger
Voltage - Supply 4.5V ~ 5.5V
Current - Quiescent (Max) 1 µA
Current - Output High, Low 4mA, 4mA
Input Logic Level - Low 0.5V ~ 0.6V
Input Logic Level - High 1.9V ~ 2.1V
Max Propagation Delay @ V, Max CL 32ns @ 4.5V, 50pF
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Supplier Device Package 8-VSSOP
Package / Case 8-VFSOP (0.091", 2.30mm Width)
Base Product Number 74HCT3G14
Standard Package 1 pcs
HTSUS 0000.00.0000
Win Source Part Number 549505-74HCT3G14DC
Ultra Librarian 3D Model Ultra Librarian 74HCT3G14DC CAD Model

Description

The 549505-74HCT3G14DC is an integrated circuit from the 74HCT series.

  • Series: 74HCT
  • Type: Logic Gate and Inverter with Schmitt Trigger
  • Package: Bulk
  • Circuits: 3
  • Mounting Type: Surface Mount
  • Package/Case: 8-VFSOP (0.091", 2.30mm Width)
  • Supplier Device Package: 8-VSSOP
  • Operating Temperature: -40°C to 125°C
  • Input Logic Level Low: 0.5V ~ 0.6V
  • Input Logic Level High: 1.9V ~ 2.1V
  • Maximum Propagation Delay: 32ns @ 4.5V with 50pF
  • Current Output High: 4mA
  • Current Output Low: 4mA
  • Maximum Quiescent Current: 1µA
  • Voltage Supply Range: 4.5V to 5.5V
  • Manufacturer: Nexperia USA Inc.
  • Product Line: Active
