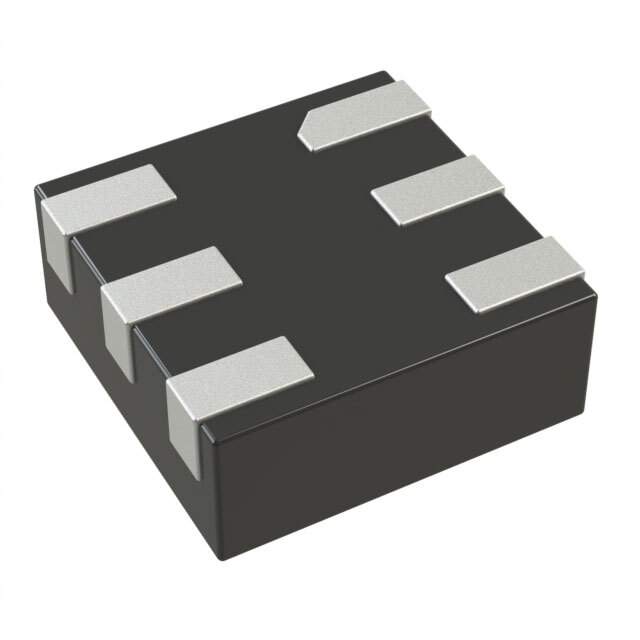

The NL27WZ14MU3TCG is a high-performance dual inverter integrated circuit, designed and manufactured by ON Semiconductor. This device is part of a series that delivers cutting-edge performance in a compact, micro-miniature package, making it ideal for space-constrained applications.

Key Features

• High-Speed Operation: The NL27WZ14MU3TCG operates at a speed comparable to larger, more power-hungry devices, making it suitable for fast-switching applications.
• Low Power Consumption: Designed with energy efficiency in mind, this dual inverter features a low static power consumption, which is critical for battery-operated devices.
• Advanced Design: The device is built using ON Semiconductor’s advanced high-speed silicon gate CMOS technology, which enhances its performance and reliability.
• Wide Operating Voltage Range: It operates over a broad voltage range from 1.65V to 5.5V, allowing it to be used in various logic-level environments.
• Multiple Package Options: Available in ultra-small packages, including SC-88A and SC-70, the NL27WZ14MU3TCG provides flexibility in design for space-sensitive applications.

Applications

The NL27WZ14MU3TCG is versatile and can be used in a wide array of applications. These include, but are not limited to:

• Portable Devices
• Logic Level Translation
• Signal Processing
• Frequency Doubling
• Communication Systems

Technical Specifications

Environmental & Quality Certifications

The NL27WZ14MU3TCG is compliant with various environmental standards, ensuring that it meets the latest requirements for electronic components. It includes certifications such as RoHS and is designed for high reliability and performance.
