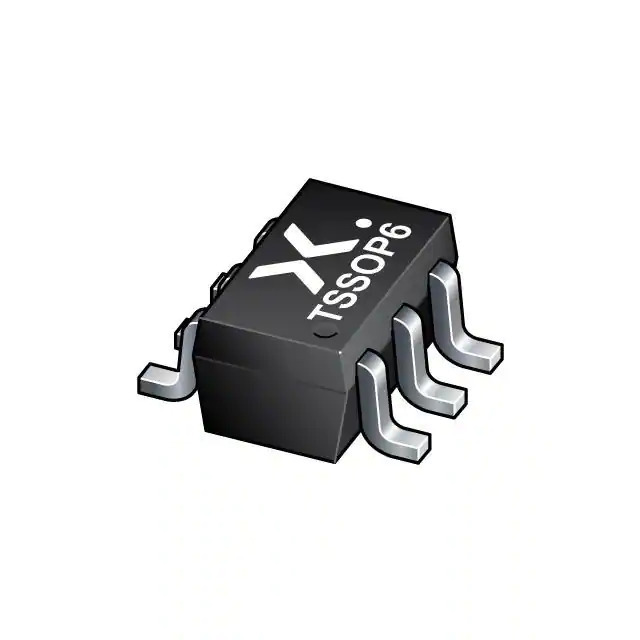

Same model may have multiple batches, images only for reference.
74AUP1T97GW-Q100H Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

74AUP1T97GW-Q100H

Part No 74AUP1T97GW-Q100H
Manufacturer Nexperia USA Inc.
Catalog Logic - Gates and Inverters - Multi - Function, Configurable
Description 74AUP1T97GW-Q100/SOT363/SC-88
Datasheet
74AUP1T97GW-Q100H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Logic - Gates and Inverters - Multi-Function, Configurable
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q100, 74AUP
Package Tape & Reel
Product Status Active
Logic Type Configurable Multiple Function
Number of Circuits 1
Number of Inputs 3
Schmitt Trigger Input Yes
Output Type Single-Ended
Current - Output High, Low 4mA, 4mA
Voltage - Supply 2.3V ~ 3.6V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 6-TSSOP, SC-88, SOT-363
Supplier Device Package 6-TSSOP
Base Product Number 74AUP1T97
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1371108-74AUP1T97GW-Q100H
Ultra Librarian 3D Model Ultra Librarian 74AUP1T97GW-Q100H CAD Model

Description

The 74AUP1T97GW-Q100H is a configurable logic gate and inverter from Nexperia USA Inc.

  • Series: 74AUP
  • Application: Automotive
  • Standard: AEC-Q100
  • Voltage Supply Range: 2.3V to 3.6V
  • Output Type: Single-Ended
  • Package: 6-TSSOP
  • Mounting Type: Surface Mount
  • Temperature Range: -40°C to 125°C
  • Logic Function: Configurable Multiple Function Logic
  • Inputs: 3
  • Output Current: 4mA
