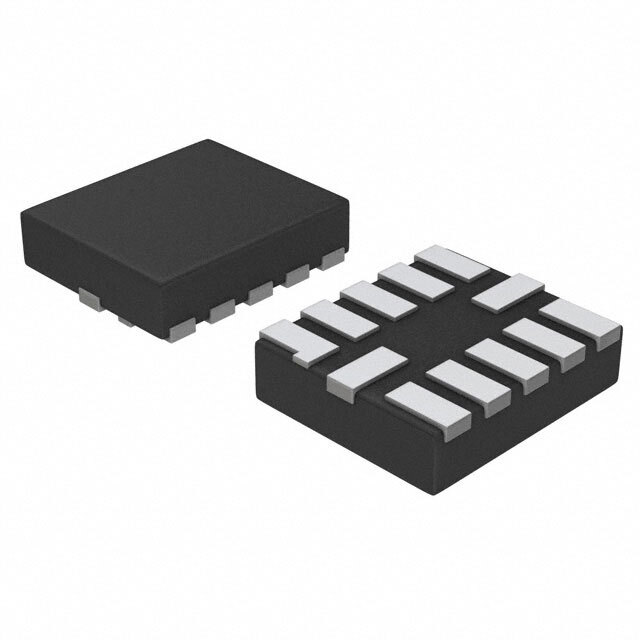

Same model may have multiple batches, images only for reference.
74AHC30GU12X Nexperia USA Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

74AHC30GU12X

Part No 74AHC30GU12X
Manufacturer Nexperia USA Inc.
Catalog Logic - Gates and Inverters
Description NAND Gate IC 1 Channel 12-XQFN (1.7x2)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr Nexperia USA Inc.
Series 74AHC
Packaging Reel - TR
Logic Type NAND Gate
Number of Circuits 1
Number of Inputs 8
Voltage - Supply 2V ~ 5.5V
Current - Quiescent (Max) 2 µA
Current - Output High, Low 8mA, 8mA
Input Logic Level - Low 0.5V ~ 1.65V
Input Logic Level - High 1.5V ~ 3.85V
Max Propagation Delay @ V, Max CL 8ns @ 5V, 50pF
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Supplier Device Package 12-XQFN (1.7x2)
Package / Case 12-XFQFN
Base Product Number 74AHC30
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0060
Win Source Part Number 1478070-74AHC30GU12X
Ultra Librarian 3D Model Ultra Librarian 74AHC30GU12X CAD Model
