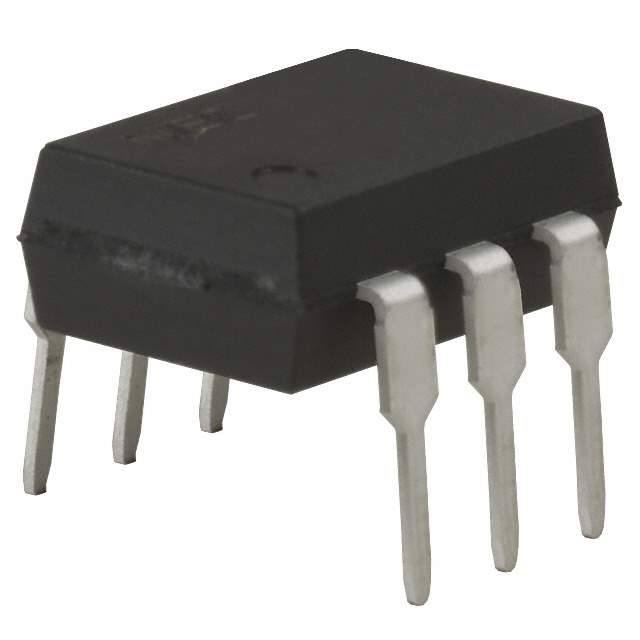

The PS7341-1B is a solid-state relay (SSR) manufactured by NEC (now Renesas Electronics). This device is designed to provide electrical isolation and switching capabilities for various applications. It combines an LED on the input side with a photodiode array and MOSFETs on the output side to create a robust and reliable switching solution.

Applications

• Industrial Control Systems: Used for switching and controlling industrial equipment, such as motors, valves, and actuators.
• Security Systems: Provides isolation and switching in security system components, such as alarm panels and access control systems.
• Measurement Equipment: Used in test and measurement equipment for isolating and switching signals.
• Office Automation Equipment: Employed in office automation devices like copiers and printers for switching and controlling various functions.
• Amusement Machines: Used in amusement machines for switching and controlling lights, motors, and other components.

Features

• High Isolation Voltage: Offers a high isolation voltage, providing electrical isolation between the input and output circuits.
• Low On-Resistance: Features a low on-resistance, minimizing power dissipation and voltage drop across the relay.
• High Switching Speed: Provides fast switching speeds, enabling efficient control of various loads.
• Compact Package: Available in a compact package, making it suitable for space-constrained applications.
• Low Input Current: Requires a low input current for activation, making it compatible with various control circuits.

Benefits

• Enhanced Safety: Provides electrical isolation, protecting sensitive circuitry from high voltages and transient surges.
• Improved Reliability: Offers high reliability and long lifespan due to the absence of mechanical contacts.
• Reduced Maintenance: Requires minimal maintenance compared to electromechanical relays.
• Silent Operation: Operates silently, making it suitable for noise-sensitive environments.
• Energy Efficiency: Consumes less power compared to electromechanical relays.

The PS7341-1B is characterized by its high isolation voltage, typically around 5000 Vrms. It also offers a low on-resistance, typically in the range of a few ohms. Its input current is low, usually a few milliamperes. It is designed to switch loads with voltages typically up to a few hundred volts and currents up to a few hundred milliamperes. The operating temperature range is typically -30°C to +85°C.
