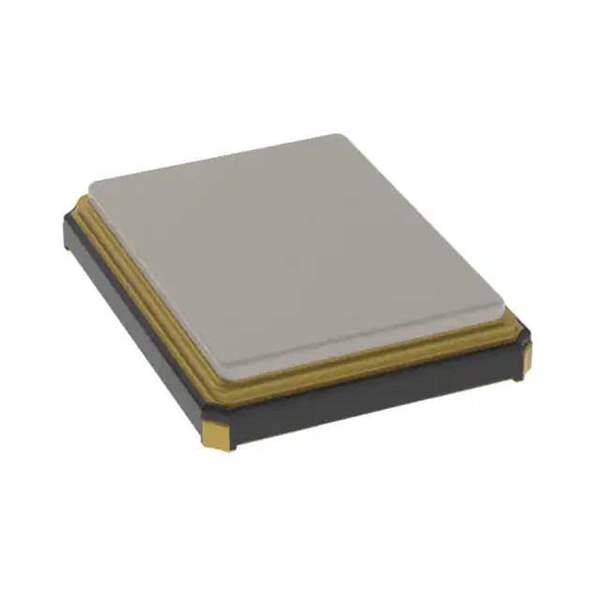

NX3225SA-16.000M-STD-CRS-2 Real Image
Same model may have multiple batches, images only for reference.

NX3225SA-16.000M-STD-CRS-2

Part No NX3225SA-16.000M-STD-CRS-2
Manufacturer NDK
Catalog Oscillators
Description CRYSTAL 16.0000MHZ 8PF SMD
Datasheet
NX3225SA-16.000M-STD-CRS-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr NDK
Series NX3225SA
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 16 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±15ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 120 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.024" (0.60mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 843523-NX3225SA-16.000M-STD-CRS-2
Ultra Librarian 3D Model Ultra Librarian NX3225SA-16.000M-STD-CRS-2 CAD Model

Description

The NX3225SA-16.000M-STD-CRS-2 is a 16 MHz crystal from the NX3225SA series manufactured by NDK.

  • Size: 0.126" L x 0.098" W
  • Height: 0.024"
  • Operating Temperature: -40°C to 125°C
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±15ppm
  • Load Capacitance: 8pF
  • ESR: 120 Ohms
  • Mounting Type: Surface Mountable
  • Package: 4-SMD, no lead
  • Product Status: Active
  • Standard Package: 3,000 pieces
