Same model may have multiple batches, images only for reference.

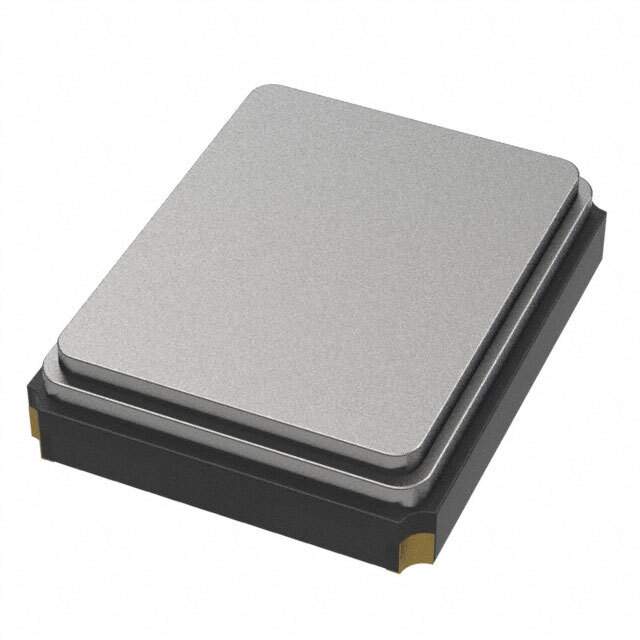

NX2016SA-25MHZ-EXS00A-CS11321 Real Image
Same model may have multiple batches, images only for reference.

NX2016SA-25MHZ-EXS00A-CS11321

Part No NX2016SA-25MHZ-EXS00A-CS11321
Manufacturer NDK
Catalog Crystals
Description CRYSTAL 25.0000MHZ 6PF SMD / 25 MHz Crystal 6pF 80 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr NDK America, Inc.
Series NX2016SA
Package Tape & Reel
Type MHz Crystal
Frequency 25 MHz
Load Capacitance 6pF
ESR (Equivalent Series Resistance) 80 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.020" (0.50mm)
Standard Package 6,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 1340034-NX2016SA-25MHZ-EXS00A-CS11321
Ultra Librarian 3D Model Ultra Librarian NX2016SA-25MHZ-EXS00A-CS11321 CAD Model

Description

The NX2016SA-25MHZ-EXS00A-CS11321 is a surface mount MHz crystal oscillator from NDK America, Inc.

  • Package / Case: 4-SMD, No Lead
  • Size / Dimension: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Height - Seated (Max): 0.020" (0.50mm)
  • Frequency: 25 MHz
  • ESR (Equivalent Series Resistance): 80 Ohms
  • Load Capacitance: 6pF
  • Mode: Fundamental
  • Operating Temperature: -40°C ~ 125°C
  • Features: AEC-Q200
  • Applications: Automotive
