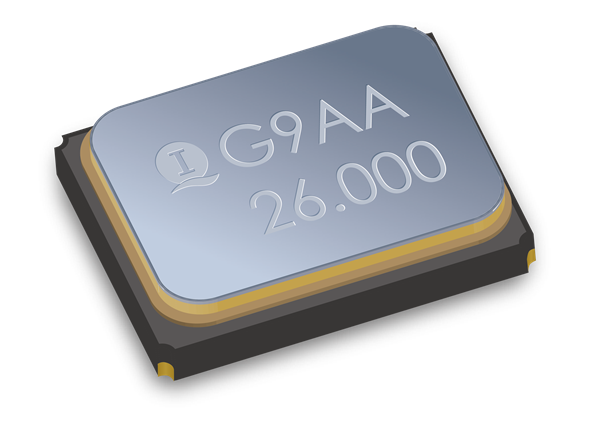

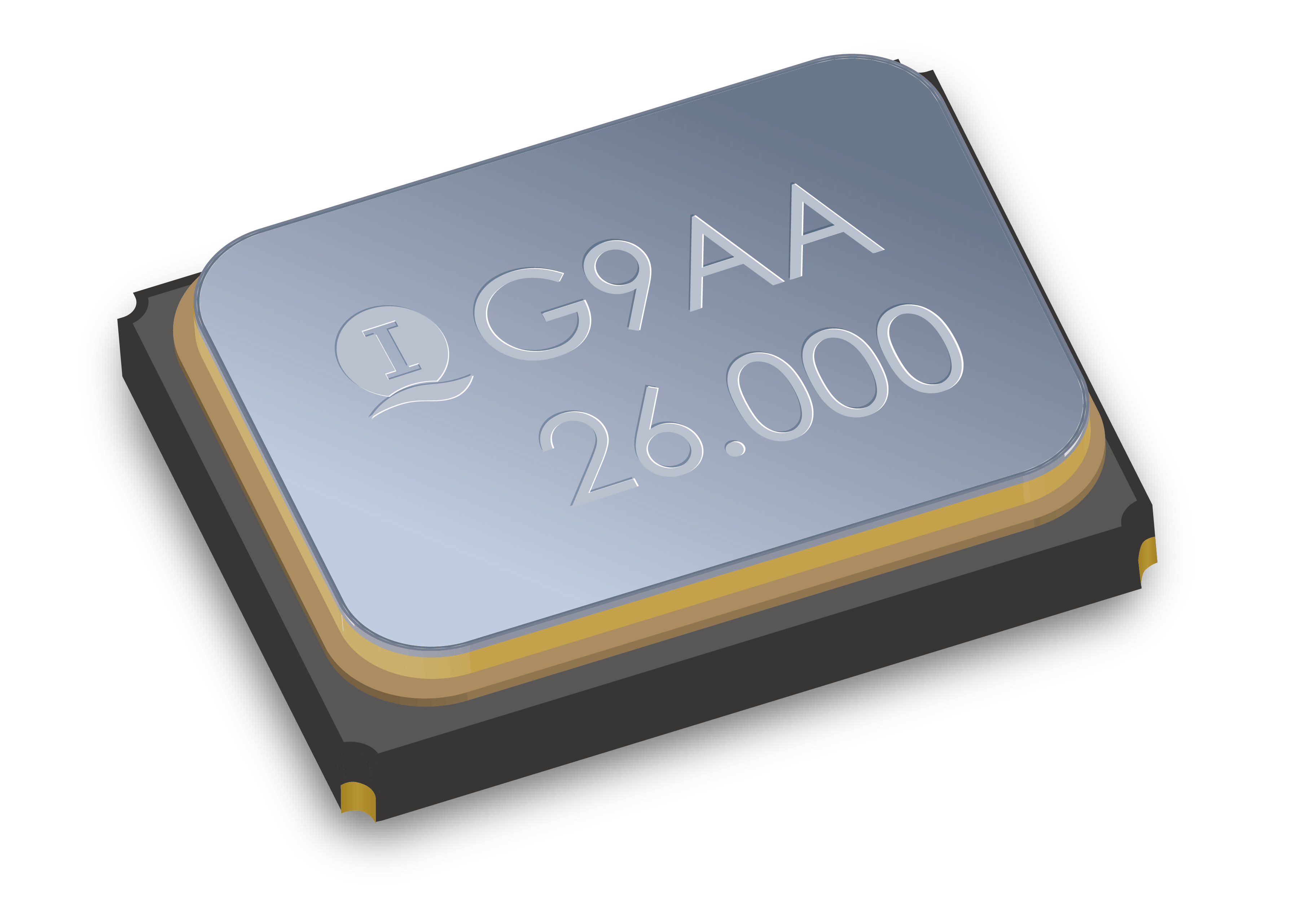

5ZAA27120182KF80Q2 Interquip Electronics – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

5ZAA27120182KF80Q2

Part No 5ZAA27120182KF80Q2
Manufacturer Interquip Electronics
Catalog Crystals
Description Crystal 27.120MHz 18PF SMCE-2520 Series
Datasheet
5ZAA27120182KF80Q2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Size 2.5x2.0mm
Nominal Frequency Range 12.0MHz ~ 125.0MHz
Frequency Tolerance, Ta=25℃ ± 3℃ ±10ppm, ±20ppm
Load Capacitance 10pF or specify
Frequency Tolerance over Operating Temperature Range ±10ppm, ±20ppm, ±50ppm or specify
Operating Temperature Range -20℃ ~ +70℃, -40℃ ~ +85℃, -40℃ ~ +125℃ or specify
Storage Temperature Range -55℃ ~ +125℃
Drive Level 100μW Typ.
Shunt Capacitance 2pF Max.
Insulation Resistance 500MΩ Min.
Aging ±3ppm/Year Max.
ESR 80~120Ω Max.
Ultra Librarian 3D Model Ultra Librarian 5ZAA27120182KF80Q2 CAD Model

Description

Surface mount ceramic enclosures|High reliability seam welded package|Conforms to AEC-Q200 (Optional)|Wide frequency range|RoHS Compliant and Pb Free
