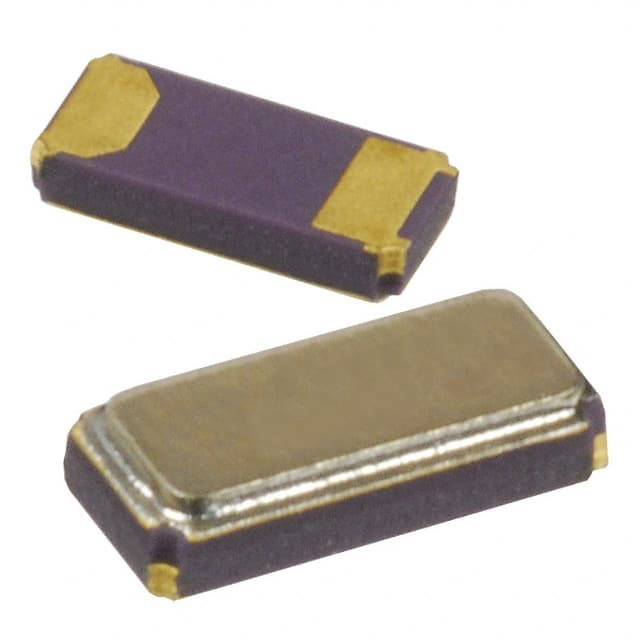

Same model may have multiple batches, images only for reference.
NX2012SA-32.768K-STD-MUB-1 NDK
Same model may have multiple batches, images only for reference.

NX2012SA-32.768K-STD-MUB-1

Part No NX2012SA-32.768K-STD-MUB-1
Manufacturer NDK
Catalog Oscillators
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr NDK America, Inc.
Series NX2012SA
Package Tape & Reel
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±20ppm
Load Capacitance 12.5pF
ESR (Equivalent Series Resistance) 80 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.081" L x 0.047" W (2.05mm x 1.20mm)
Height - Seated (Max) 0.024" (0.60mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0010
Win Source Part Number 1314346-NX2012SA-32.768K-STD-MUB-1
Ultra Librarian 3D Model Ultra Librarian NX2012SA-32.768K-STD-MUB-1 CAD Model

Description

The NX2012SA series from NDK America, Inc. is a kHz crystal (tuning fork) component that comes in a tape & reel package.

  • Height: 0.024" (0.60mm)
  • Mounting Type: SMD (SMT)
  • Frequency: 32.768 kHz
  • ESR (Equivalent Series Resistance): 80 kOhms
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 12.5pF
  • Operating Mode: Fundamental
  • Package/Case: 2-SMD, No Lead
  • Operating Temperature: -40°C ~ 85°C
  • Dimension: 0.081" L x 0.047" W (2.05mm x 1.20mm)
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8541.60.0010
