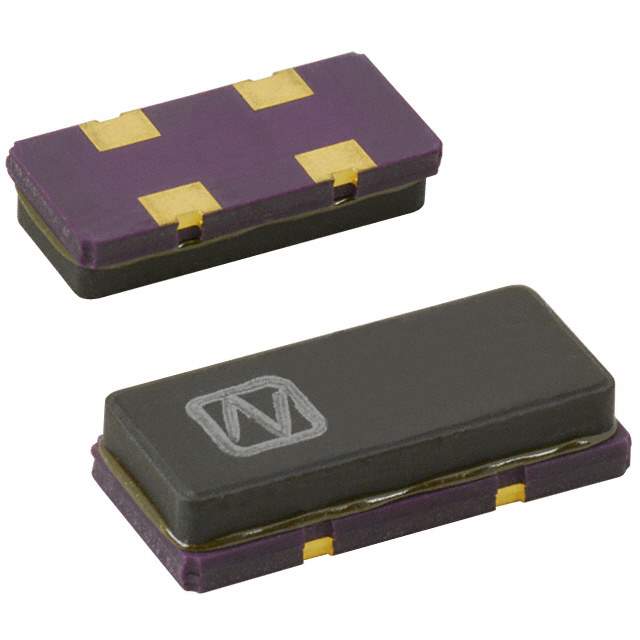

NX1255GB-10.000000MHZ Real Image
Same model may have multiple batches, images only for reference.

NX1255GB-10.000000MHZ

Part No NX1255GB-10.000000MHZ
Manufacturer NDK
Catalog Crystals
Description CRYSTAL 10.0000MHZ 12PF SMD / 10 MHz ±50ppm Crystal 12pF 80 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr NDK America, Inc.
Series NX1255GB
Package Tape & Reel
Product Status Obsolete
Type MHz Crystal
Frequency 10 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±50ppm
Load Capacitance 12pF
ESR (Equivalent Series Resistance) 80 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 70°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.465" L x 0.217" W (11.80mm x 5.50mm)
Height - Seated (Max) 0.104" (2.65mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Other Names 644-1008-1,644-1008-2,NX1255GB-10.000000MHZ-STD-CSA-1,644-1008-6,NX1255GB10000000MHZ
Standard Package 1,000
Win Source Part Number 992778-NX1255GB-10.000000MHZ
Ultra Librarian 3D Model Ultra Librarian NX1255GB-10.000000MHZ CAD Model

Description

The NX1255GB-10.000000MHZ is a MHz Crystal that is an excellent choice for use in various electronic devices.

  • Manufacturer: NDK America, Inc.
  • Frequency: 10 MHz
  • ESR: 80 Ohms
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±50ppm
  • Load Capacitance: 12pF
  • Mode: Fundamental
  • Package/Case: 4-SMD, No Lead
  • Operating Temperature: -10°C to 70°C
  • Dimensions: 0.465" L x 0.217" W (11.80mm x 5.50mm)
  • Alternative parts: 644-1008-1, 644-1008-2, NX1255GB-10.000000MHZ-STD-CSA-1, 644-1008-6, and NX1255GB10000000MHZ
