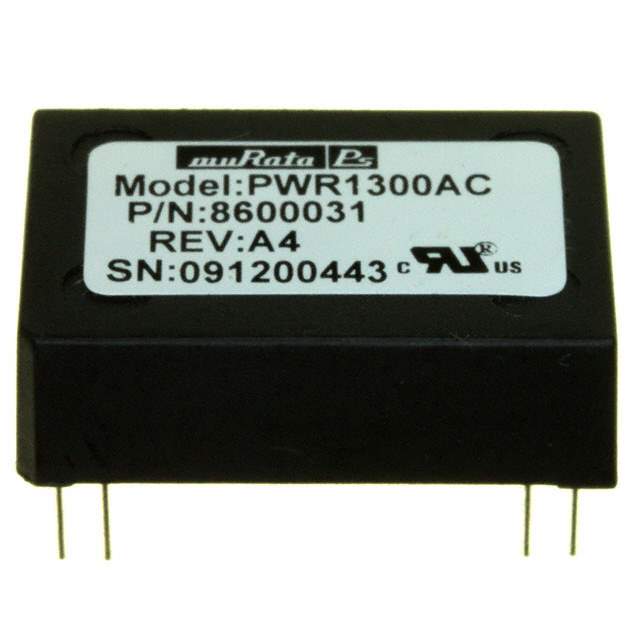

Same model may have multiple batches, images only for reference.

PWR1300AC

Name: PWR1300AC
Brand: Murata Power Solutions Inc.
SKU: 1232521
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PWR1300AC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 2W / Isolated Module DC DC Converter 1 Output 5V 300mA 4.5V - 5.5V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	PWR13xxC (1.5W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	5V
Current - Output (Max)	300mA
Power (Watts)	2 W
Voltage - Isolation	4 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	75%
Mounting Type	Through Hole
Package / Case	24-DIP Module, 9 Leads
Dimension	1.27" L x 0.81" W x 0.40" H (32.3mm x 20.5mm x 10.2mm)
Base Product Number	PWR13
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	811-1812-5
Standard Package	51
Win Source Part Number	1232521-PWR1300AC
Ultra Librarian 3D Model	Ultra Librarian PWR1300AC CAD Model

Alternative Products

Description

Murata Power Solutions Inc. brings to you the PWR13xxC (1.5W) series isolated module DC DC converter, part number 1232521-PWR1300AC.

Power Rating: 2W
Outputs: One
Maximum Output Current: 300mA
Input Voltage Range: 4.5V to 5.5V
Isolation Voltage: 4kV
Package: 24-DIP module with 9 leads
Efficiency: 75%
Application: ITE (Commercial)
Temperature Range: -40°C to 85°C
