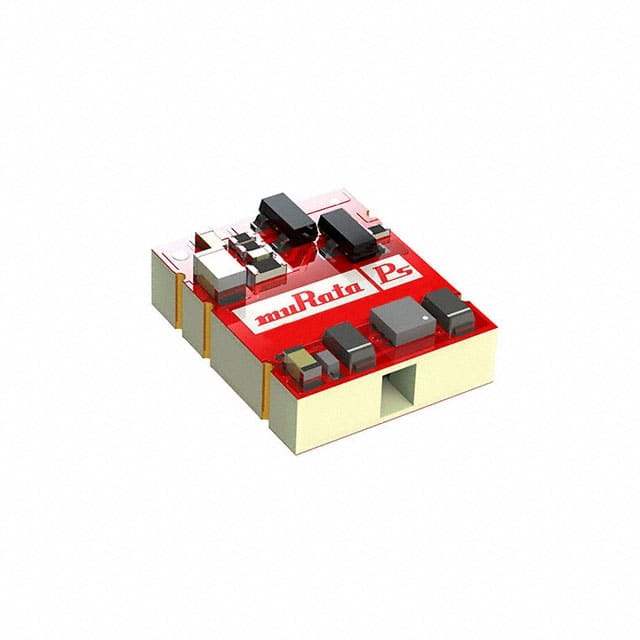

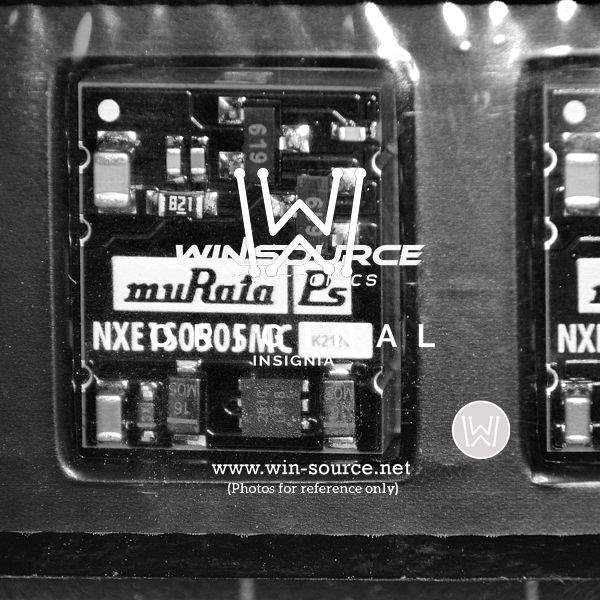

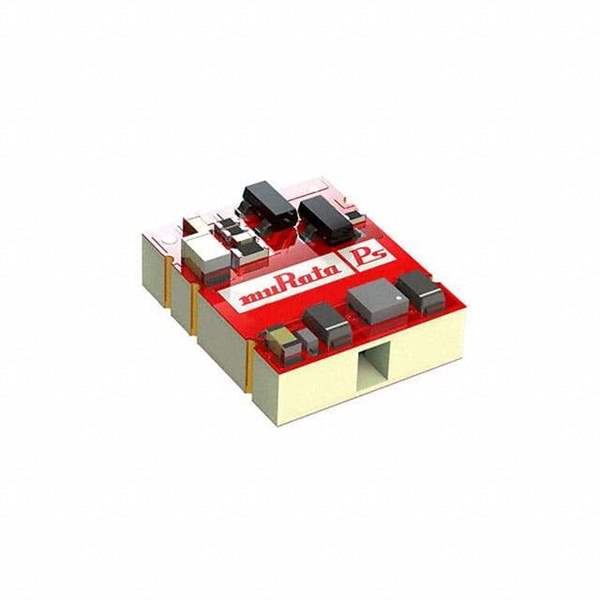

NXE1S0505MC-R7 Real Image NXE1S0505MC-R7 Real Image1 NXE1S0505MC-R7 Real Image2
Same model may have multiple batches, images only for reference.
NXE1S0505MC-R7 Real Image NXE1S0505MC-R7 Real Image1 NXE1S0505MC-R7 Real Image2
NXE1S0505MC-R7 Real Image NXE1S0505MC-R7 Real Image1 NXE1S0505MC-R7 Real Image2
Same model may have multiple batches, images only for reference.

NXE1S0505MC-R7

Part No NXE1S0505MC-R7
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NXE1 (1W)
Package Tape & Reel
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial), Medical
Features SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 66%
Mounting Type Surface Mount
Package / Case 14-SMD Module, 5 Leads
Size / Dimension 0.50" L x 0.41" W x 0.18" H (12.7mm x 10.4mm x 4.5mm)
Base Product Number NXE1S05
Standard Package 180 pcs
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 845957-NXE1S0505MC-R7
Ultra Librarian 3D Model Ultra Librarian NXE1S0505MC-R7 CAD Model

Description

The 845957-NXE1S0505MC-R7 is a DC-DC converter from Murata Power Solutions Inc.

  • Series: NXE1 (1W)
  • Type: Isolated Module
  • Protection: Short Circuit Protection (SCP)
  • Package: Tape and Reel
  • Size: 0.50" L x 0.41" W x 0.18" H (12.7mm x 10.4mm x 4.5mm)
  • Applications: ITE (Commercial) and Medical Devices
  • Power Rating: 1W
  • Voltage Isolation: 3kV
  • Output Type: Single
  • Maximum Output Current: 200mA
  • Input Voltage: 4.5V to 5.5V
  • Output Voltage: 5V
  • Efficiency: 66%
  • Mounting Type: Surface Mount
  • Package/Case: 14-SMD Module, 5 Leads
  • Temperature Range: -40°C to 85°C
  • MSL Level: 2 (1 year)
  • HTSUS Code: 8504.40.9580
  • Product Status: Active
  • Application: Board Mount DC-DC Converter
