Same model may have multiple batches, images only for reference.

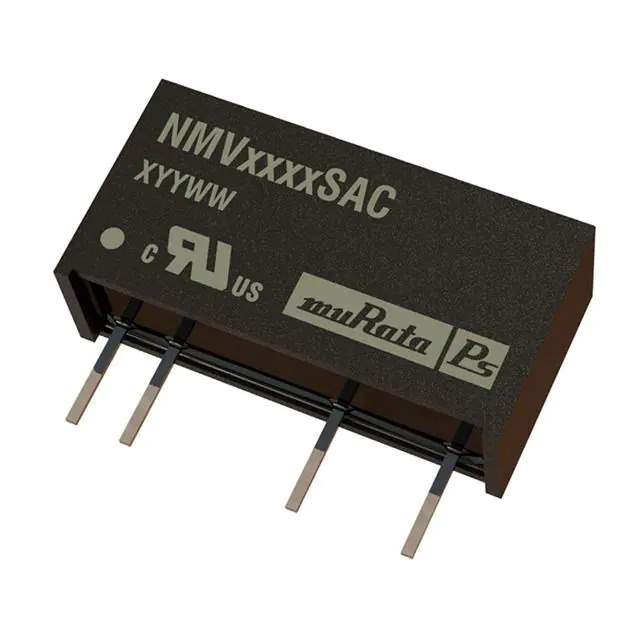

NMV0509SAC Real Image
Same model may have multiple batches, images only for reference.

NMV0509SAC

Part No NMV0509SAC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 9V 1W / Isolated Module DC DC Converter 1 Output 9V 111mA 4.5V - 5.5V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NMV (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 9V
Current - Output (Max) 111mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 75%
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Size / Dimension 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Base Product Number NMV05
Standard Package 25 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649206-NMV0509SAC
Ultra Librarian 3D Model Ultra Librarian NMV0509SAC CAD Model

Description

The NMV0509SAC is an isolated module DC-DC converter from the NMV (1W) series by Murata Power Solutions Inc.

  • Package: Tube
  • Size Dimension: 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
  • Application: ITE (Commercial)
  • Power Rating: 1W
  • Maximum Output Current: 111mA
  • Input Voltage Range: 4.5V to 5.5V
  • Output Voltage: 9V
  • Efficiency: 75%
  • Mounting Type: Through-hole
  • Operating Temperature Range: -40°C to 85°C
