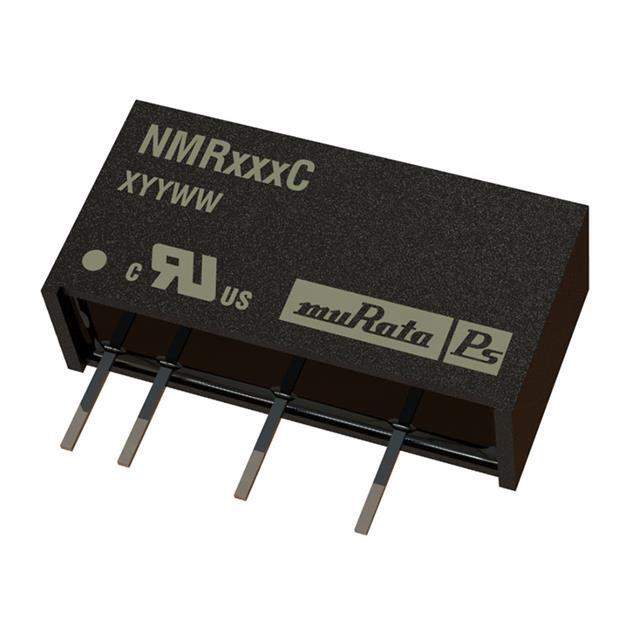

NMR100C Real Image
Same model may have multiple batches, images only for reference.

NMR100C

Part No NMR100C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC 1W 5VIN 5VOUT SIP SGL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Murata Power Solutions Inc.
Standard Package 25
Category Power Supplies - Board Mount
Family DC DC Converters
Series NMR
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Mounting Style Through Hole
Package 7-SIP Module (4 Leads)
Size / Dimension 0.77" L x 0.24" W x 0.39" H (19.6mm x 6.1mm x 9.9mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 69%
Power (Watts) - Max 1W
Catalog NMR Series
Win Source Part Number 060528-NMR100C
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Power Management
Ultra Librarian 3D Model Ultra Librarian NMR100C CAD Model

Description

The Murata Power Solutions Inc. NMR100C is a DC DC converter from the NMR series.

  • Maximum Output Current: 200mA
  • Efficiency: 69%
  • Mounting Style: Through-hole
  • Isolation Voltage: 1kV (1000V)
  • Application: ITE (Commercial)
  • Operating Temperature Range: -40°C to 85°C
  • Dimensions: 0.77" L x 0.24" W x 0.39" H (19.6mm x 6.1mm x 9.9mm)
  • Input Voltage Range: Between 4.5V and 5.5V
