Same model may have multiple batches, images only for reference.

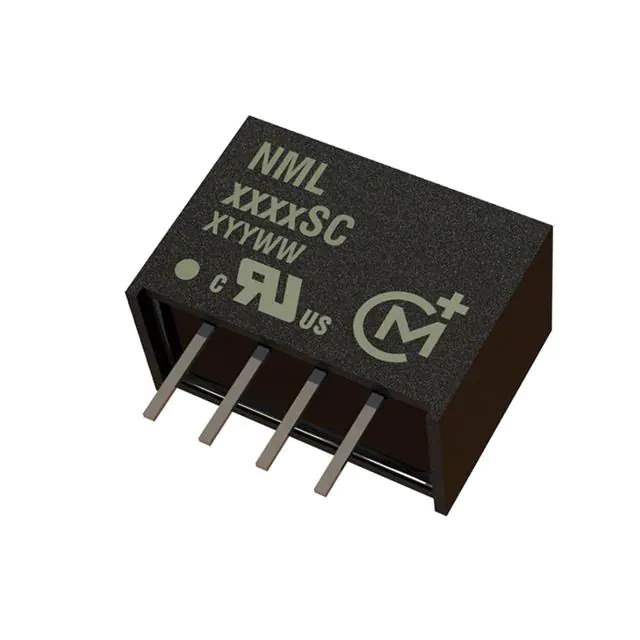

NML1205SC Real Image
Same model may have multiple batches, images only for reference.

NML1205SC

Part No NML1205SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 2W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NML (2W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 5V
Current - Output (Max) 400mA
Power (Watts) 2 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 81%
Mounting Type Through Hole
Package / Case 4-SIP Module
Size / Dimension 0.55" L x 0.30" W x 0.39" H (14.0mm x 7.6mm x 9.9mm)
Base Product Number NML12
Standard Package 35 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649189-NML1205SC
Ultra Librarian 3D Model Ultra Librarian NML1205SC CAD Model

Description

The NML1205SC is a 2W isolated module DC-DC converter from Murata Power Solutions Inc.

  • Series: NML
  • Voltage Isolation: 1 kV
  • Number of Outputs: 1
  • Output Current (Max): 400mA
  • Input Voltage: 10.8V to 13.2V
  • Output Voltage: 5V
  • Efficiency: 81%
  • Package: Tube
  • Size: 0.55" L x 0.30" W x 0.39" H
  • Mounting Type: Through-Hole
  • Package: 4-SIP
  • Operating Temperature: -40°C to 85°C
  • Application: ITE (Commercial)
  • Standard Package: 35 pcs
