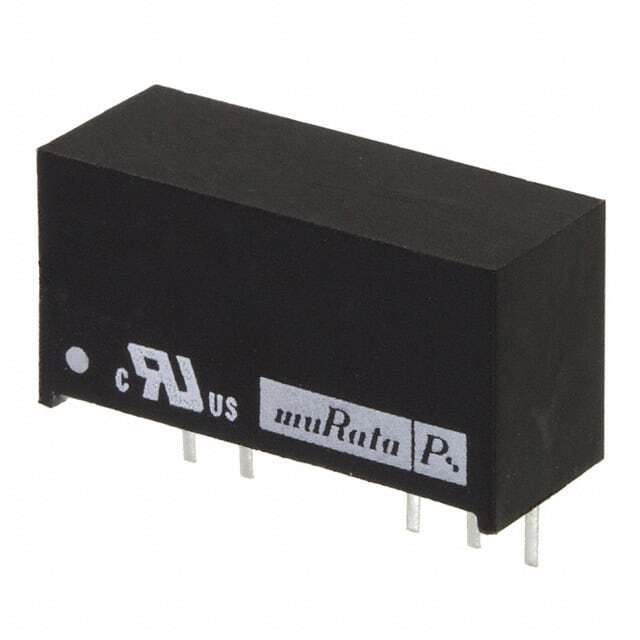

Same model may have multiple batches, images only for reference.
NMK2405SC
Same model may have multiple batches, images only for reference.

NMK2405SC

Part No NMK2405SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 2W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NMK (2W)
Package Tube
Product Status Obsolete
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 200mA, 200mA
Power (Watts) 2 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 84%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.30" W x 0.40" H (19.7mm x 7.7mm x 10.2mm)
Base Product Number NMK24
Standard Package 25 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 847865-NMK2405SC
Ultra Librarian 3D Model Ultra Librarian NMK2405SC CAD Model

Description

The NMK2405SC is a power supply module in the NMK series from Murata Power Solutions Inc.

  • Description: 2W isolated module designed for board mount DC-DC conversion.
  • Features: 3 kV voltage isolation.
  • Outputs: Two outputs with a maximum output current of 200mA each.
  • Input Voltage Range: From 21.6V to 26.4V.
  • Output Voltages: 5V and -5V.
  • Efficiency: 84%.
  • Applications: ITE (Commercial).
  • Package: 7-SIP module with 5 leads.
  • Mounting: Through-hole.
  • Operating Temperature Range: -40°C to 85°C.
  • Status: Obsolete.
