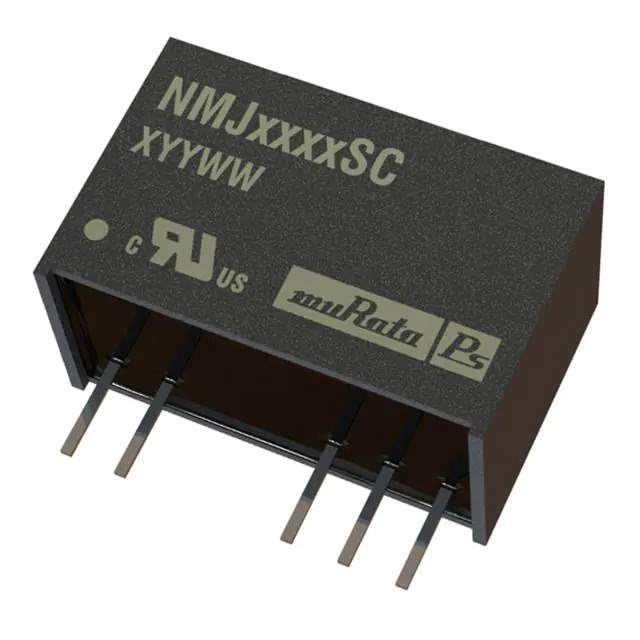

NMJ0509SC Real Image
Same model may have multiple batches, images only for reference.

NMJ0509SC

Part No NMJ0509SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-9V 1W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NMJ (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 9V
Voltage - Output 2 -9V
Current - Output (Max) 55mA, 55mA
Power (Watts) 1 W
Voltage - Isolation 5.2 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 60°C
Efficiency 65%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.4mm)
Base Product Number NMJ05
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649166-NMJ0509SC
Ultra Librarian 3D Model Ultra Librarian NMJ0509SC CAD Model

Description

The NMJ0509SC is a 1W isolated module DC-DC converter from Murata Power Solutions Inc.

  • Series: NMJ
  • Application: Power Supplies, Board Mount
  • Size: 0.77" L x 0.39" W x 0.49" H
  • Packaging: Tube
  • Outputs: Two
  • Output Voltages: 9V and -9V
  • Maximum Output Current: 55mA (per output)
  • Input Voltage Range: 4.5V to 5.5V
  • Efficiency: 65%
  • Application: Commercial
  • Standard Package: 25 pcs
  • Product Status: Active
