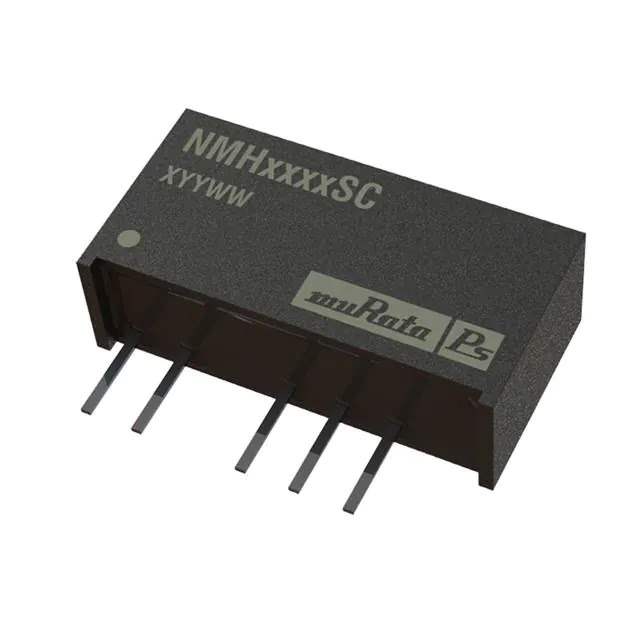

NMH1209SC Real Image
Same model may have multiple batches, images only for reference.

NMH1209SC

Part No NMH1209SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-9V 2W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NMH (2W)
Package Tube
Product Status Last Time Buy
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 9V
Voltage - Output 2 -9V
Current - Output (Max) 111mA, 111mA
Power (Watts) 2 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 83%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm)
Base Product Number NMH12
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649156-NMH1209SC
Ultra Librarian 3D Model Ultra Librarian NMH1209SC CAD Model

Description

The NMH1209SC is a 2W isolated module DC-DC converter from Murata Power Solutions Inc.

  • Series: NMH
  • Application: Power supplies in board mount applications
  • Package: Tube
  • Dimensions: 0.77" L x 0.30" W x 0.40" H
  • Voltage Isolation: 1 kV
  • Number of Outputs: 2
  • Maximum Output Current: 111mA each
  • Input Voltage Range: 10.8V to 13.2V
  • Output Voltages: 9V and -9V
  • Efficiency: 83%
  • Operating Temperature: -40°C to 85°C
  • Suitable for: ITE (Commercial) applications
