Same model may have multiple batches, images only for reference.

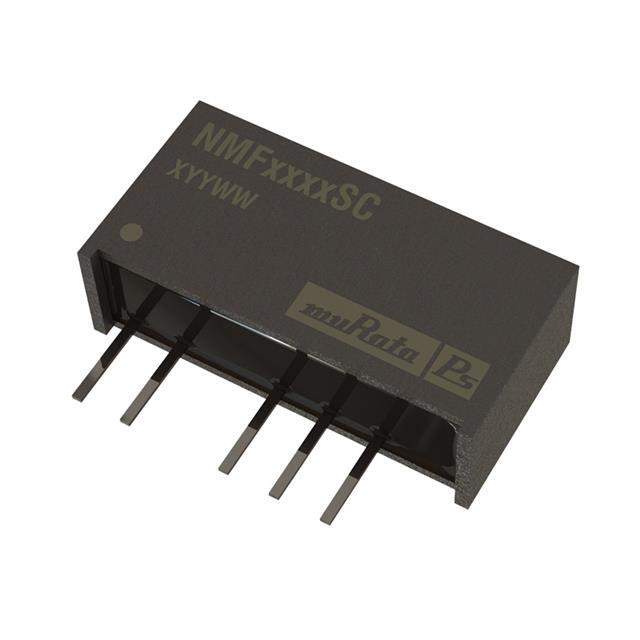

NMF0505SC Real Image
Same model may have multiple batches, images only for reference.

NMF0505SC

Part No NMF0505SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC 1W 5VIN 5VOUT SIP SGL / Module DC-DC 5VIN 1-OUT 5V 0.1A 0.5W 5-Pin SIP
Datasheet
NMF0505SC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series NMF
Packaging Tube
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 4.75V
Voltage Input MAX 5.25V
Voltage - Output 1 5V
Current - Output (Maximum) 100mA
Power (Watts) 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Operating Temperature Range 0°C ~ 70°C
Efficiency 50%
Mounting Style Through Hole
Package 7-SIP Module, 5 Leads
Dimension 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Win Source Part Number 790744-NMF0505SC
Popularity Medium
Supply and Demand Status Limited
Family Name NMF0505SC
Introduction Date February 29, 2008
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian NMF0505SC CAD Model

Description

The Murata Power Solutions Inc. NMF0505SC is a 7-SIP Module, 5 Leads type isolated module.

  • Power: 1W
  • Efficiency: 50%
  • Voltage Isolation: 1kV (1000V)
  • Output Voltage: 5V
  • Applications: ITE (Commercial)
  • Temperature Range: 0°C to 70°C
  • Dimension: 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
  • Input Voltage Range: 4.75V to 5.25V
  • Maximum Output Current: 100mA
  • Series: NMF
  • Packaging: Tube
  • Introduction Date: February 29, 2008
  • Estimated EOL Date: 2027
  • Country of Origin: China
