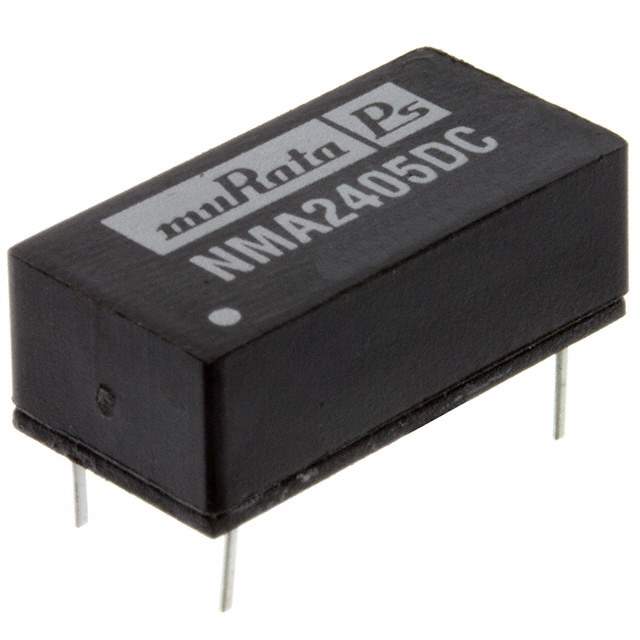

NMA2405DC Real Image
Same model may have multiple batches, images only for reference.

NMA2405DC

Part No NMA2405DC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 1W
Datasheet
NMA2405DC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Features Isolated Module DC DC Converter 2 Output 5V -5V - 100mA, 100mA 21.6V - 26.4V Input
Manufacturer Murata Power Solutions Inc.
Series NMA (1W)
Package Tube
Part Status Obsolete
Operating Temperature Range -40°C ~ 85°C
Mounting Through Hole
Package 14-DIP Module, 6 Leads
Family Name NMA24
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Quantity per package 25
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 887477-NMA2405DC
Ultra Librarian 3D Model Ultra Librarian NMA2405DC CAD Model

Description

The NMA2405DC is an isolated module DC DC converter from Murata Power Solutions Inc.

  • Manufacturer: Murata Power Solutions Inc.
  • Outputs: 5V -5V
  • Current: 100mA, 100mA
  • Input Voltage: 21.6V - 26.4V
  • Operating Temperature: -40°C to 85°C
  • Package: 14-DIP module, 6 leads
  • Product Status: Obsolete
  • ECCN: EAR99
  • Quantity per Package: 25
