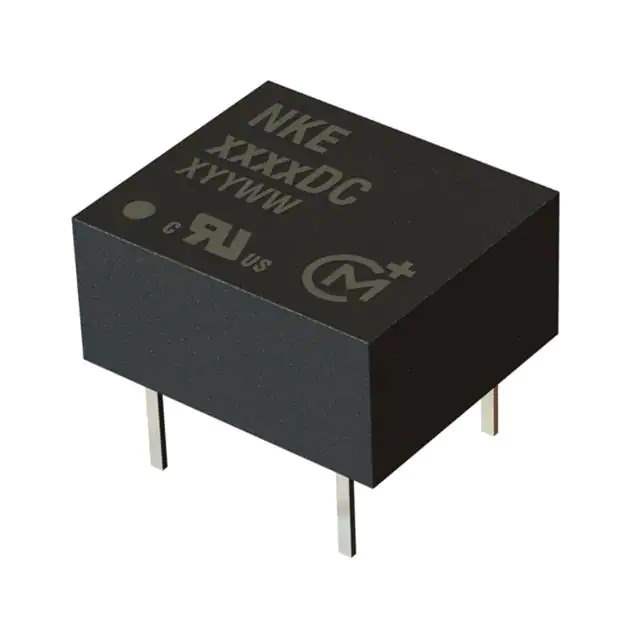

NKE1209DC Real Image
Same model may have multiple batches, images only for reference.

NKE1209DC

Part No NKE1209DC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 9V 1W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NKE (1W)
Package Tube
Product Status Last Time Buy
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 9V
Current - Output (Max) 111mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 78%
Mounting Type Through Hole
Package / Case 8-DIP Module, 4 Leads
Size / Dimension 0.45" L x 0.39" W x 0.21" H (11.5mm x 9.8mm x 5.4mm)
Base Product Number NKE12
Standard Package 40 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 648821-NKE1209DC
Ultra Librarian 3D Model Ultra Librarian NKE1209DC CAD Model

Description

The NKE1209DC is a 1W isolated module DC-DC converter designed for power supplies in commercial applications.

  • Voltage Isolation: 3 kV
  • Maximum Output Current: 111mA
  • Input Voltage: 10.8V to 13.2V
  • Output Voltage: 9V
  • Efficiency: 78%
  • Package: 8-DIP Module, 4 Leads
  • Operating Temperature: -40°C to 85°C
  • Manufacturer: Murata Power Solutions Inc.
  • Standard Package: 40 pcs
  • Series: NKE
