Same model may have multiple batches, images only for reference.

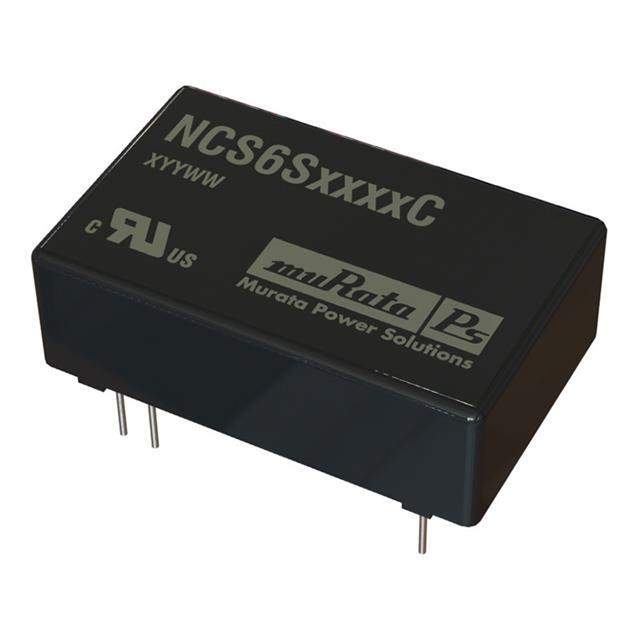

NCS6S1203C Real Image
Same model may have multiple batches, images only for reference.

NCS6S1203C

Part No NCS6S1203C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description Isolated 6W 4:1 Input Single Output DC/DC Converters
Datasheet
NCS6S1203C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series NCS6
Packaging Tube
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 9V
Voltage Input MAX 36V
Voltage - Output 1 3.3V
Current - Output (Maximum) 1.52A
Power (Watts) 5W
Voltage - Isolation 1.5kV (1500V)
Applications ITE (Commercial)
Features OTP, SCP, UVLO
Operating Temperature Range -40°C ~ 85°C
Efficiency 78%
Mounting Style Through Hole
Package 24-DIP Module, 8 Leads
Size 1.26" L x 0.79" W x 0.39" H (32.0mm x 20.0mm x 10.0mm)
Win Source Part Number 1230534-NCS6S1203C
Manufacturer Homepage www.murata-ps.com
Popularity Medium
Supply and Demand Status Limited
Family Name NCS6S1203C
Country of Origin China
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian NCS6S1203C CAD Model

Description

The NCS6S1203C is an isolated module with a power of 5W and an efficiency of 78%, from Murata Power Solutions Inc.

  • Voltage Isolation: 1.5kV (1500V)
  • Current Output: 1.52A
  • Package: 24-DIP module, 8 leads
  • Mounting: Through hole
  • Operating Temperature: -40°C ~ 85°C
  • Features: OTP, SCP, and UVLO
  • Application: ITE (Commercial)
  • Supply and Demand Status: Limited
  • Estimated EOL Date: 2024
