Same model may have multiple batches, images only for reference.

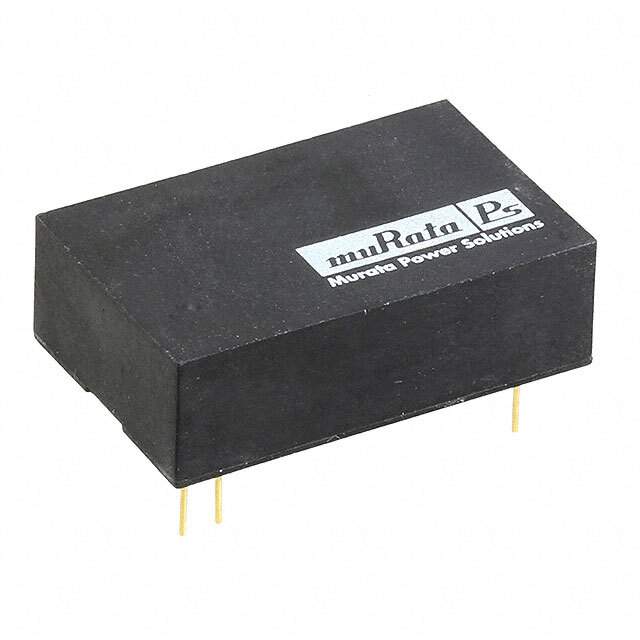

NCM6S0503EC Real Image
Same model may have multiple batches, images only for reference.

NCM6S0503EC

Part No NCM6S0503EC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC/DC CONVERTER 3.3V 6W / Module DC-DC 5VIN 1-OUT 3.3V 1.52A 6W 7-Pin
Datasheet
NCM6S0503EC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series NCM6
Packaging Tube
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 4.5V
Voltage Input MAX 9V
Voltage - Output 1 3.3V
Current - Output (Maximum) 1.52A
Power (Watts) 6W
Voltage - Isolation 5.2kV (5200V)
Applications ITE (Commercial), Medical
Features Remote On/Off, OTP, SCP, UVLO
Operating Temperature Range -40°C ~ 85°C
Efficiency 75%
Mounting Style Through Hole
Package 24-DIP Module, 7 Leads
Dimension 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm)
Win Source Part Number 790557-NCM6S0503EC
Popularity Medium
Supply and Demand Status Limited
Family Name NCM6
Introduction Date March 28, 2014
Country of Origin China
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian NCM6S0503EC CAD Model

Description

The NCM6S0503EC is an isolated module type power supply from Murata Power Solutions Inc.

  • Applications: ITE (Commercial), Medical
  • Maximum Power Output: 6W
  • Features: Remote On/Off, OTP, SCP, UVLO
  • Package: 24-DIP module
  • Leads: 7
  • Size: 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm)
  • Operating Temperature Range: -40°C ~ 85°C
  • Mounting: Through hole
  • Voltage Isolation: 5.2kV (5200V)
  • Outputs: 1
  • Voltage Output: 3.3V
  • Efficiency: 75%
  • Family: NCM6
