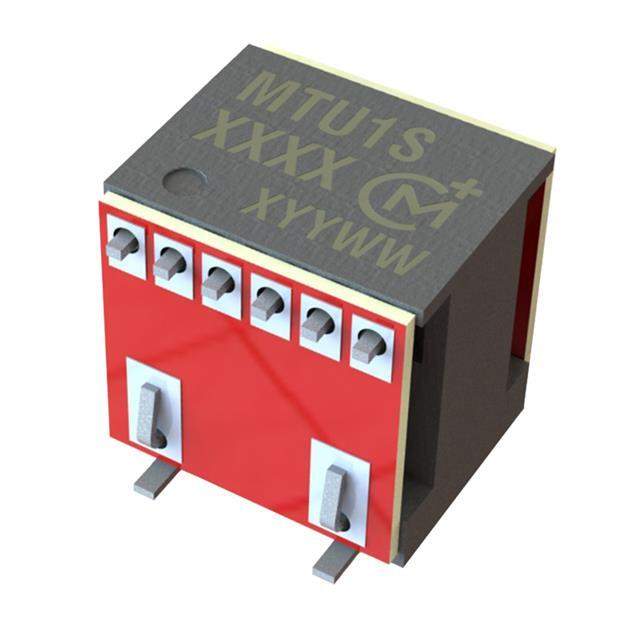

MTU1S0505MC Real Image
Same model may have multiple batches, images only for reference.

MTU1S0505MC

Part No MTU1S0505MC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Murata Power Solutions Inc.
Series MTU1 (1W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 83%
Mounting SMD (SMT)
Package / Case 5-SMD Module
Dimension 0.33" L x 0.32" W x 0.34" H (8.4mm x 8.2mm x 8.5mm)
Base Product Number MTU1S05
Other Names 811-2250-5
Standard Package 60
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1237393-MTU1S0505MC
Ultra Librarian 3D Model Ultra Librarian MTU1S0505MC CAD Model

Description

The MTU1S0505MC isolated module is a high-performance DC-DC converter designed for ITE (Commercial) applications.

  • Power Output: 1 W
  • Voltage Isolation: 1 kV
  • Output: Single
  • Maximum Current Output: 200 mA
  • Efficiency: 83%
  • Input Voltage Range: 4.5V to 5.5V
  • Output Voltage: 5V
  • Temperature Range: -40°C to 85°C
  • Package: 5-SMD module
  • Dimensions: 0.33" L x 0.32" W x 0.34" H (8.4mm x 8.2mm x 8.5mm)
  • Standard Package: 60
