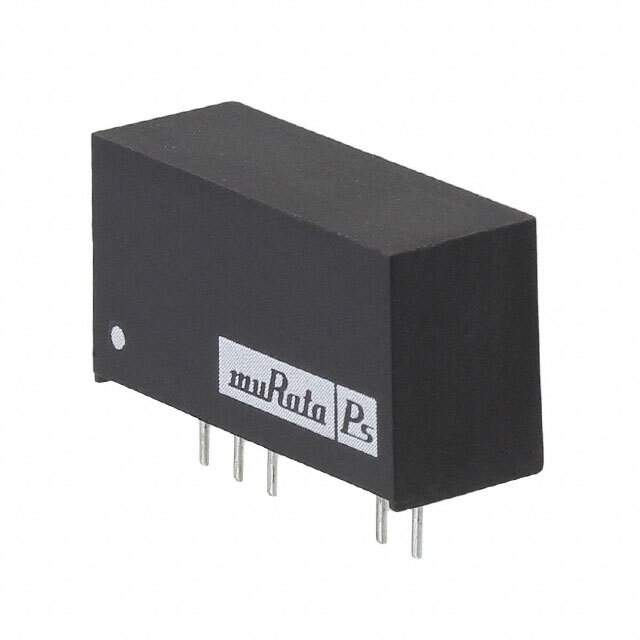

MEV1D2415SC Real Image
Same model may have multiple batches, images only for reference.

MEV1D2415SC

Part No MEV1D2415SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description 3kVDC Isolated 1W Single & Dual Output DC/DC Converters | DC DC CONVERTER +/-15V 1W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Minimum) 21.6V
Voltage - Input (Maximum) 26.4V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Maximum) 33mA, 33mA
Power (W) 1W
Voltage - Isolation 3kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 87.5%
Mounting Style Through Hole
Manufacturer Package 7-SIP Module, 5 Leads
Parts Dimension 0.78" L x 0.40" W x 0.24" H (19.7mm x 10.2mm x 6.2mm)
Manufacturer Pack Quantity 25
MSL Level 1 (Unlimited)
Win Source Part Number 1221733-MEV1D2415SC
Manufacturer Homepage www.murata.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MEV1D2415SC CAD Model

Description

The Murata Power Solutions Inc. MEV1D2415SC is an isolated module that comes in a 7-SIP Module, 5 Leads package.

  • Power: 1W
  • Outputs: Two
  • Voltage-isolation: 3kV
  • Application: ITE (Commercial)
  • Operating Temperature: -40°C to 85°C
  • Efficiency: 87.5%
  • Mounting: Through hole
  • Input Voltage: 21.6V to 26.4V
  • Voltage Output: 15V and -15V
  • Package Dimension: 0.78" L x 0.40" W x 0.24" H (19.7mm x 10.2mm x 6.2mm)
