Same model may have multiple batches, images only for reference.

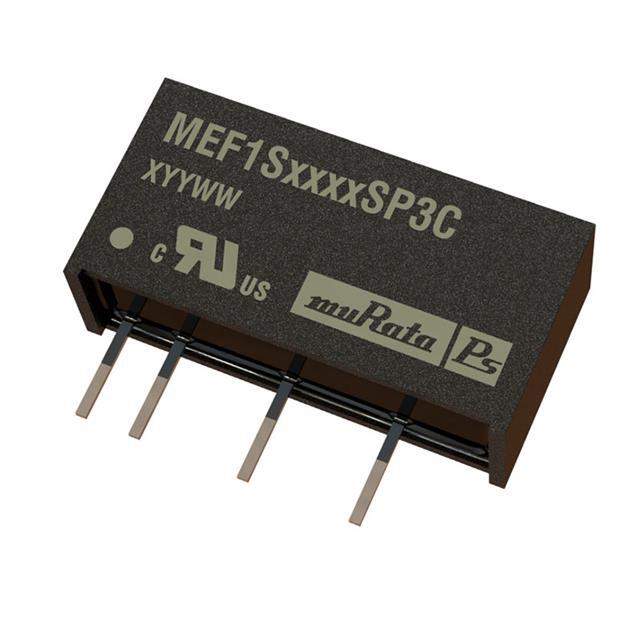

MEF1S0503SP3C Real Image
Same model may have multiple batches, images only for reference.

MEF1S0503SP3C

Part No MEF1S0503SP3C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC/DC CONVERTER 3.3V 1W
Datasheet
MEF1S0503SP3C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series MEF1
Packaging Tube
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 4.75V
Voltage Input MAX 5.25V
Voltage - Output 1 3.3V
Current - Output (Maximum) 303mA
Power (Watts) 1W
Voltage - Isolation 3kV (3000V)
Applications ITE (Commercial)
Features SCP
Operating Temperature Range -40°C ~ 85°C
Efficiency 68.5%
Mounting Style Through Hole
Package 7-SIP Module, 4 Leads
Dimension 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm)
Win Source Part Number 788402-MEF1S0503SP3C
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name MEF1S0503SP3C
Introduction Date November 25, 2013
Country of Origin China
Ultra Librarian 3D Model Ultra Librarian MEF1S0503SP3C CAD Model

Description

The Murata Power Solutions Inc. 788402-MEF1S0503SP3C is an isolated module from Murata Power Solutions Inc. with through-hole mounting style and one output.

  • Applications: ITE (Commercial)
  • Power: 1W
  • Voltage Isolation: 3kV (3000V)
  • Efficiency: 68.5%
  • Operating Temperature: -40°C to 85°C
  • Dimensions: 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm)
  • Package: 7-SIP module, 4 leads
  • Current Output: 303mA
  • Voltage Input: 4.75V to 5.25V
