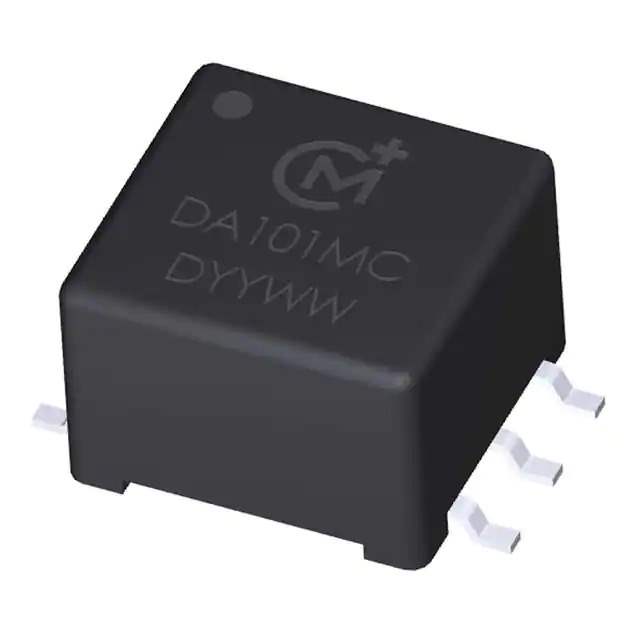

DA102MC-R Real Image
Same model may have multiple batches, images only for reference.

DA102MC-R

Part No DA102MC-R
Manufacturer Murata Power Solutions Inc.
Catalog Pulse Transformers
Description DIGITAL AUDIO TX 1:1 3MH SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Murata Power Solutions Inc.
Series DA100
Package Tape & Reel
Product Status Not For New Designs
Inductance 3.9mH
ET (Volt-Time) 20VµS
Mounting Type Surface Mount
Size / Dimension 0.354" L x 0.375" W (9.00mm x 9.52mm)
Height - Seated (Max) 0.250" (6.35mm)
Temperature Range - Operating 0°C ~ 70°C
Base Product Number DA102
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 583612-DA102MC-R
Ultra Librarian 3D Model Ultra Librarian DA102MC-R CAD Model

Description

The 583612-DA102MC-R is a pulse transformer from the DA100 series by Murata Power Solutions Inc.

  • Product Name: 583612-DA102MC-R
  • Series: DA100
  • Package: Tape & Reel
  • Size: 0.354" L x 0.375" W (9.00mm x 9.52mm)
  • Inductance: 3.9mH
  • Height: 0.250" (6.35mm)
  • Mounting Type: Surface Mount
  • Operating Temperature: 0°C to 70°C
