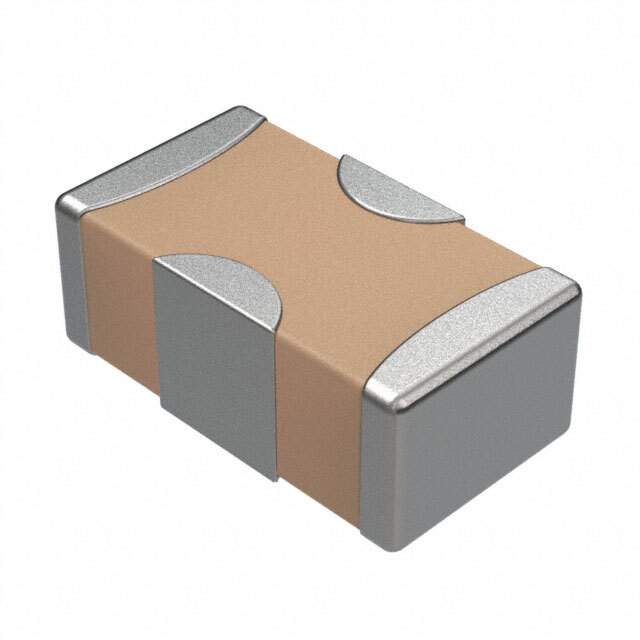

The NFM18CC223R1C3 is a Multilayer Ceramic Chip EMI Suppression Filter manufactured by Murata Electronics North America. It is designed to reduce electromagnetic interference (EMI) in electronic circuits operating at high frequencies. It features a capacitance of 22nF and is commonly used in power lines and signal lines to filter out unwanted noise.

Applications

• Mobile Phones
• Wireless Communication Devices
• Digital Cameras
• Audio Equipment
• Power Supplies

Features

• Multilayer Ceramic Construction: Provides excellent reliability and performance.
• 22nF Capacitance: Offers effective EMI suppression in a wide frequency range.
• Compact Size: Small form factor allows for easy integration into space-constrained designs.
• High Attenuation: Provides significant reduction in EMI noise.
• Low Insertion Loss: Minimizes signal degradation.
• Operating Temperature Range: -55°C to +125°C
• RoHS Compliant: Environmentally friendly and compliant with RoHS regulations.

Benefits

• Reduced EMI Noise: Improves signal quality and reduces interference with other electronic devices.
• Enhanced System Performance: Minimizes noise-related errors and improves overall system stability.
• Easy to Integrate: Small size and surface mount package simplify integration into existing designs.
• Increased Reliability: Multilayer ceramic construction ensures long-term reliability.
• Compliance with Regulations: RoHS compliance ensures adherence to environmental standards.

Additional Details

The NFM18CC223R1C3 is typically surface mounted on a PCB. Proper soldering techniques are essential to ensure reliable electrical connection. The datasheet provides detailed specifications, including impedance characteristics, insertion loss, and attenuation curves. The filter is designed to be used in conjunction with other EMI suppression techniques, such as shielding and grounding, to achieve optimal EMI performance.
