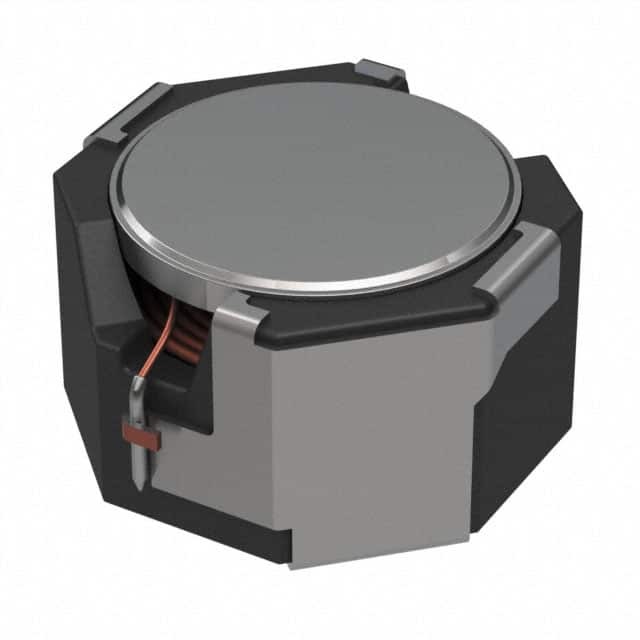

Same model may have multiple batches, images only for reference.

MDH10060C-150MA=P3

Get a Quote

Part No	MDH10060C-150MA=P3
Manufacturer	Murata Electronics North America
Catalog	Fixed Inductors
Description	FIXED IND 15UH 3.1A 27 MOHM SMD / 15 µH Unshielded Drum Core, Wirewound Inductor 3.1 A 27mOhm Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Murata Electronics
Series	MDH10060C
Package	Tape & Reel
Product Status	Not For New Designs
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	15 µH
Tolerance	±20%
Current Rating (Amps)	3.1 A
Current - Saturation (Isat)	3.4A
Shielding	Unshielded
DC Resistance (DCR)	27mOhm
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.398" L x 0.394" W (10.10mm x 10.00mm)
Height - Seated (Max)	0.248" (6.30mm)
Base Product Number	MDH10060C
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	490-17613-1,490-17613-2,490-17613-6
Standard Package	500
Win Source Part Number	1005269-MDH10060C-150MA=P3
Ultra Librarian 3D Model	Ultra Librarian MDH10060C-150MA=P3 CAD Model

Alternative Products

Description

The MDH10060C series inductor is a high-quality drum core, wirewound inductor that is designed to provide a reliable and efficient solution for a wide range of electronic applications.

Design: Unshielded
Standard Package: 500
Tolerance: ±20%
AEC-Q200: Rated AEC-Q200
Inductance: 15 µH
DC Resistance (DCR): 27mOhm
Height: 0.248" (6.30mm)
Dimension: 0.398" L x 0.394" W (10.10mm x 10.00mm)
Material: Ferrite
Current Rating: 3.1 A
Temperature Range: -55°C to 150°C
