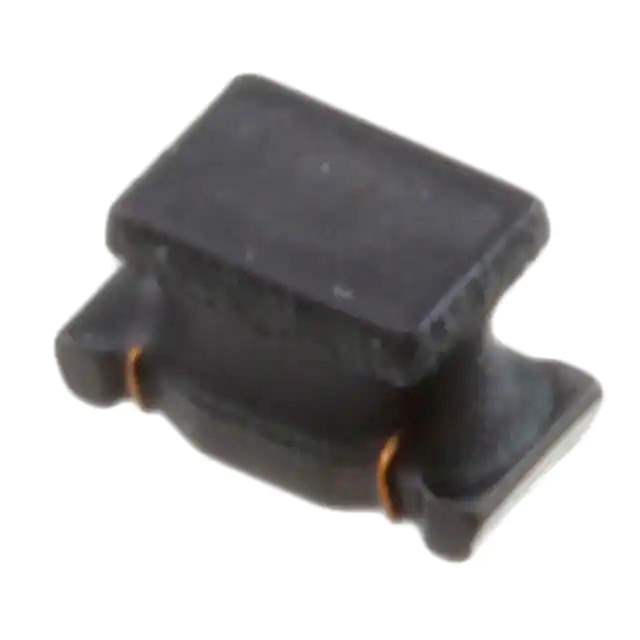

The LQH31MNR56K03L is a drum core, wirewound fixed inductor manufactured by Murata Electronics North America. It is a part of the LQH31 series and comes in an unshielded package. The inductor has a size of 0.126" L x 0.063" W (3.20mm x 1.60mm) and an inductance of 560 nH with a tolerance of ±10%.

• Maximum Seated Height: 0.079" (2.00mm)
• DC Resistance (DCR): 610mOhm
• Temperature Range: -40°C to 85°C
• Q Value: 30 at 25MHz
• Self-Resonant Frequency: 180MHz
• Current Rating: 200 mA

This surface mountable inductor is widely used in various electronic applications due to its compact size, high inductance, and reliable performance.
