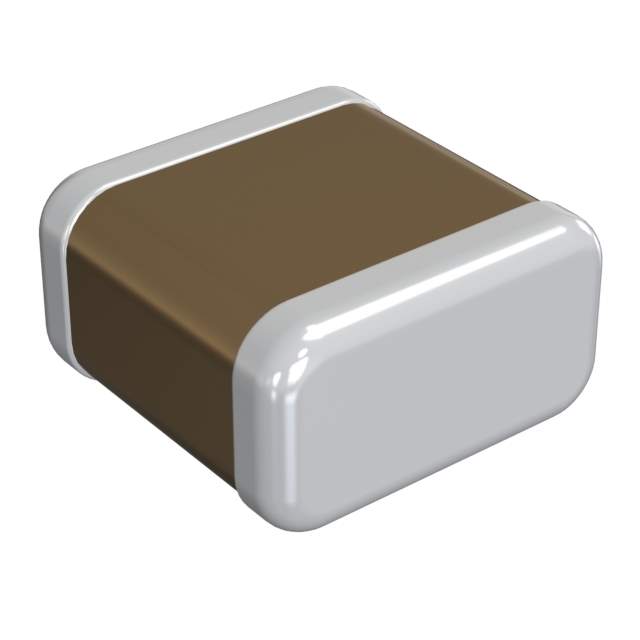

The GRM033R71C221KA01D is a general-purpose ceramic capacitor manufactured by Murata Electronics North America. It's part of the GRM series, recognized for its compact size and reliable performance. This capacitor is typically used for decoupling, bypass, and filtering in electronic circuits.

Applications

• Mobile phones and smartphones
• Wearable devices
• Wireless communication modules
• Consumer electronics
• Audio equipment
• Power supplies

Features

• Capacitance: 220 pF (Picofarads)
• Voltage rating: 16 VDC
• Temperature coefficient: X7R, indicating moderate capacitance change with temperature
• Tolerance: ±10%
• Size: 0201 (0.6mm x 0.3mm) - ultra-compact size for high-density mounting
• Termination: Sn (Tin) plating

Benefits

• Small size allows for high-density mounting, saving board space.
• Suitable for general-purpose applications due to its stable performance.
• Low equivalent series resistance (ESR) minimizes power loss and improves filtering efficiency.
• RoHS compliant, meeting environmental regulations.

Additional Details

The GRM033R71C221KA01D uses a ceramic dielectric material, providing stable insulation and performance. The X7R temperature coefficient ensures reasonable capacitance stability over a typical operating temperature range (usually -55°C to +125°C), with capacitance variations generally within ±15%. The 0201 package allows for very dense placement on circuit boards, which is crucial in today's miniaturized devices. The tin plating on the terminations ensures good solderability and resistance to oxidation, promoting long-term reliability. Designed for automated placement using standard pick-and-place equipment, this capacitor integrates seamlessly into high-volume manufacturing processes. Its reliable performance and small size make it a popular choice for a wide variety of electronic applications, particularly in portable and wireless devices where space and stable performance are important.
