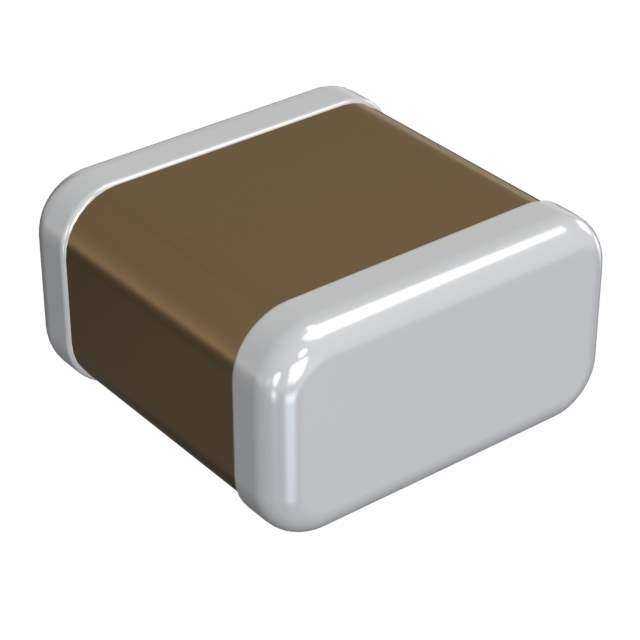

The GRM033C80J104KE15D is a ceramic capacitor manufactured by Murata Electronics North America. This capacitor belongs to the GRM series, known for its reliability and compact design, making it suitable for a variety of electronic applications. It is primarily used for bypass and decoupling applications.

Applications

• Mobile phones and smartphones
• Wearable technology
• Wireless communication devices
• General electronic circuits
• Audio and video equipment
• Power supplies

Features

• Capacitance: 0.1 µF (Microfarads)
• Voltage rating: 6.3 VDC
• Temperature coefficient: X6S, indicating moderate capacitance change with temperature
• Tolerance: ±10%
• Size: 0201 (0.6mm x 0.3mm) - ultra-compact size for high-density mounting
• Termination: Sn (Tin) plating

Benefits

• Small size allows for high-density mounting, saving valuable board space.
• Suitable for general-purpose applications due to its stable performance.
• Low equivalent series resistance (ESR) minimizes power loss and improves filtering efficiency.
• RoHS compliant, meeting environmental regulations.

Additional Details

The GRM033C80J104KE15D utilizes a ceramic dielectric material, providing reliable insulation and performance. The X6S temperature coefficient ensures reasonable capacitance stability over a moderate temperature range, typically within ±22% from -55°C to +105°C. Its 0201 package enables dense placement on circuit boards, essential for miniaturized electronic devices. The tin-plated terminations offer good solderability and resistance to oxidation, contributing to long-term reliability. This capacitor is designed for automated placement using standard pick-and-place equipment, facilitating efficient manufacturing. Its reliable performance and small size make it a versatile choice in a wide array of electronic applications, especially in portable and wireless devices where space and stable performance are important considerations.
