Same model may have multiple batches, images only for reference.

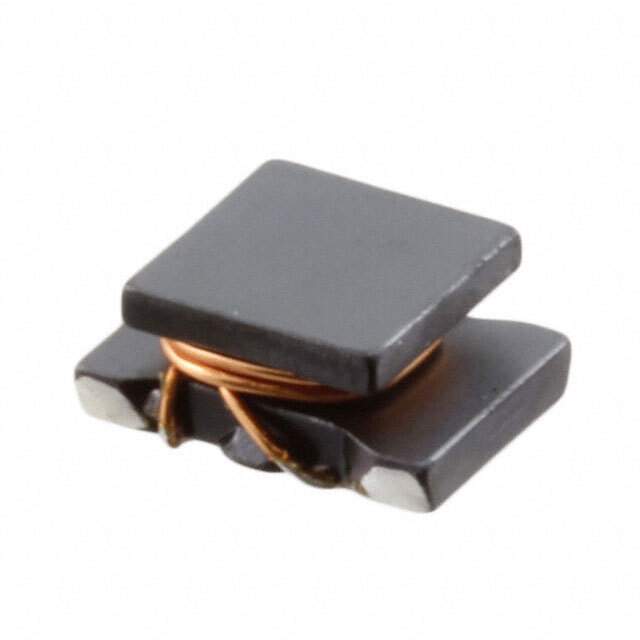

DLW5ATN851SQ2L Real Image
Same model may have multiple batches, images only for reference.

DLW5ATN851SQ2L

Part No DLW5ATN851SQ2L
Manufacturer Murata Electronics North America
Catalog Common Mode Chokes
Description CMC 1.5A 2LN 850 OHM SMD  /  2 Line Common Mode Choke Surface Mount 850 Ohms @ 100 MHz 1.5A DCR 73mOhm
Datasheet
DLW5ATN851SQ2L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Murata Electronics
Series DLW5A
Package Tape & Reel (TR)
Filter Type Power, Signal Line
Number of Lines 2
Impedance @ Frequency 850 Ohms @ 100 MHz
Current Rating (Max) 1.5A
DC Resistance (DCR) (Max) 73mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Dimension 0.197" L x 0.142" W (5.00mm x 3.60mm)
Height (Max) 0.093" (2.35mm)
Package / Case Horizontal, 4 PC Pad
Base Product Number DLW5ATN
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Standard Package 700
Win Source Part Number 1013864-DLW5ATN851SQ2L
Ultra Librarian 3D Model Ultra Librarian DLW5ATN851SQ2L CAD Model

Description

The DLW5ATN851SQ2L is a common mode choke filter manufactured by Murata Electronics.

  • Voltage Rating: 50V
  • Current Rating: 1.5A
  • Operating Temperature: -40°C to 85°C
  • Impedance: 850 Ohms @ 100 MHz
  • Category: Filters
  • Series: DLW5A
  • Type: Power and signal line filter
  • Package: Tape and reel
  • Height: 0.093" (2.35mm)
  • Lines: 2
  • DC Resistance: 73mOhm
  • Package Type: Horizontal, 4 PC pad
  • Standard Package: 700 filters
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8548.00.0000
  • Agency Approval: Approved by an agency
