MCZ1210DH500CPTA0G TDK Corporation
Same model may have multiple batches, images only for reference.

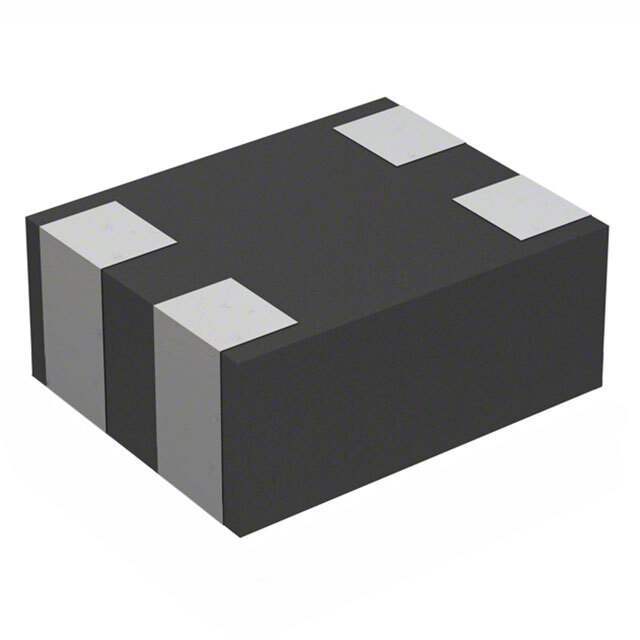

MCZ1210DH500CPTA0G

Part No MCZ1210DH500CPTA0G
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 50 OHM SMD
Datasheet
MCZ1210DH500CPTA0G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1309480-MCZ1210DH500CPTA0G
Category Filters >Common Mode Chokes
Manufacturer TDK Corporation
Packaging Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Filter Type Signal Line
Impedance @ Frequency 50 Ohms @ 100 MHz
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Size / Dimension 0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max) 0.024" (0.60mm)
Ultra Librarian 3D Model Ultra Librarian MCZ1210DH500CPTA0G CAD Model

Description

  • Multilayer common mode filter for ultra high-speed differential lines.
  • Widened frequency range for differential mode transmission up to 6.0GHz while ensuring common mode impedance.
  • Suppresses common mode noise without influencing the high-speed differential transmission line signal.
  • Characteristics impedance for differential mode is 100Ω.
  • Optimal for noise suppression of ultra high-speed differential transmission lines, HDMI, USB3.0, etc.
  • Operating temperature range: –40 to +85°C
