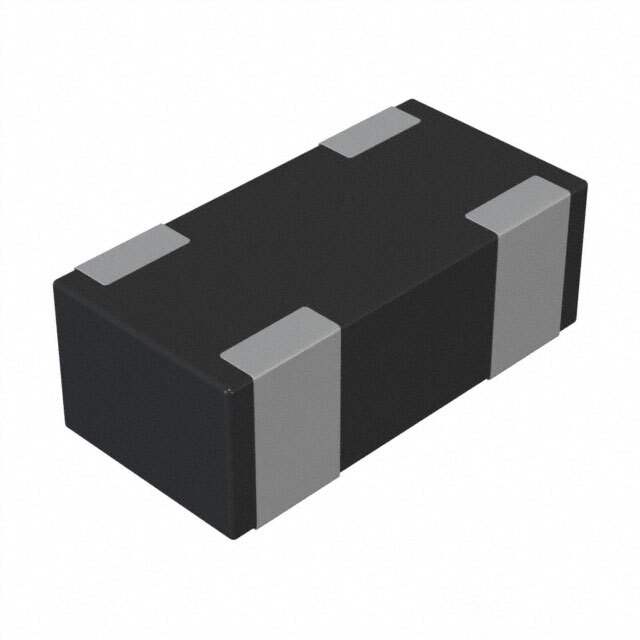

DLP31SN551ML2L

Part No DLP31SN551ML2L
Manufacturer Murata Electronics North America
Catalog Common Mode Chokes
Description CMC 100MA 2LN 550 OHM SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 550 Ohm @ 100MHz
Current Rating (Max) 100mA
DC Resistance (DCR) (Max) 3.6 Ohm
Voltage Rating - DC 16V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.051" (1.30mm)
Dimension 1206 (3216 Metric) (4 Leads)
Win Source Part Number 014312-DLP31SN551ML2L
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DLP31SN551ML2L CAD Model

Description

Product Overview

The DLP31SN551ML2L stands out as a pinnacle of microelectronic engineering, providing seamless integration into circuits requiring robust filtering and noise reduction. It is a top choice for engineers seeking performance reliability.

Features and Benefits

  • Excellent Noise Suppression: Capable of significantly reducing EMI/RFI noise.
  • Compact and Lightweight: Allows for easy inclusion in compact electronics designs.
  • Durable Construction: Offers consistent performance even in challenging conditions.
  • High-Temperature Resilience: Performs reliably under high operational temperatures.

Applications

  • Industrial Machinery: Enhances control system stability and noise reduction.
  • Medical Devices: Ensures precision and reliability in critical function circuits.
  • Consumer Electronics: Improves the performance of audio and video equipment.
