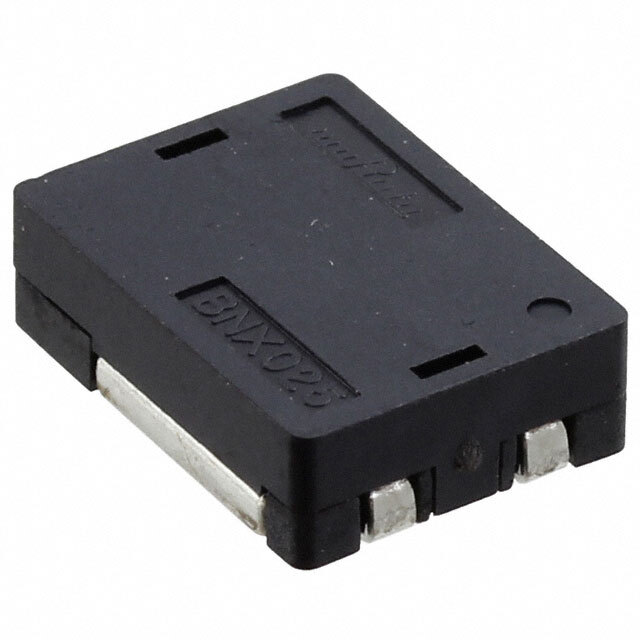

BNX024H01B Murata Electronics North America – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

BNX024H01B

Part No BNX024H01B
Manufacturer Murata Electronics North America
Catalog EMI/RFI Filters (LC, RC Networks)
Description LC EMI Filter 5th Order Low Pass 2 Channel C = 4.7µF 15 A 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Murata Electronics
Series EMIFIL®, BNX
Packaging Bulk
Type Low Pass
Filter Order 5th
Technology LC
Number of Channels 2
Attenuation Value 35dB @ 100kHz ~ 1GHz
Resistance - Channel (Ohms) 0.00043
Current 15 A
Values C = 4.7µF
ESD Protection No
Temperature Range - Operating -55°C ~ 125°C
Voltage - Rated 50V
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.476" L x 0.358" W (12.10mm x 9.10mm)
Height 0.146" (3.70mm)
Base Product Number BNX0
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1481508-BNX024H01B
Ultra Librarian 3D Model Ultra Librarian BNX024H01B CAD Model
