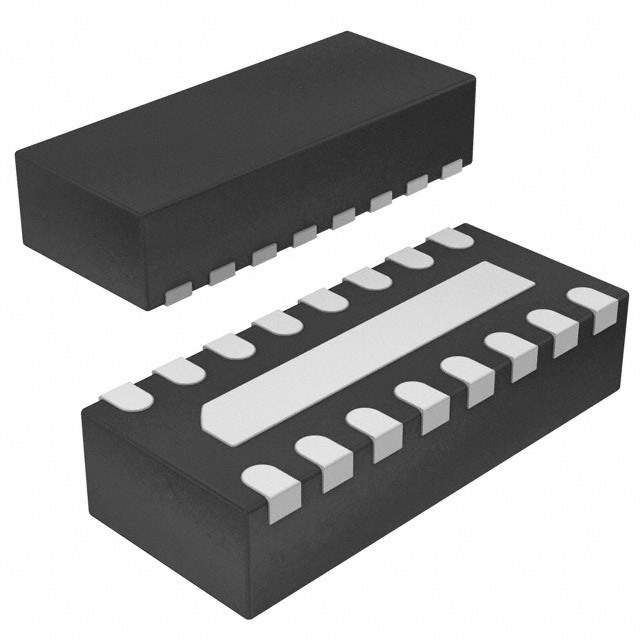

VEMI85AA-HGK-GS08

Part No VEMI85AA-HGK-GS08
Manufacturer Vishay
Catalog EMI/RFI Filters (LC, RC Networks)
Description EMI Filter Low Pass RC-Circuit Flat Style SMD T/R / FILTER RC(PI) 100 OHM/36PF SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 8
Center / Cutoff Frequency 100MHz (Cutoff)
Resistance - Channel (Ohms) 100
Current 4A
Values R = 100 Ohms, C = 36pF
ESD Protection Yes
Temperature Range - Operating -40°C to 125°C
Applications Data Lines for Mobile Devices
Mounting SMD (SMT)
Dimension 0.130" L x 0.053" W (3.30mm x 1.35mm)
Height 0.024" (0.60mm)
Win Source Part Number 036251-VEMI85AA-HGK-GS08
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Industrial
Quantity per package 3k pcs
Family Name VEMI85AA-HGK
Introduction Date December 24, 2006
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian VEMI85AA-HGK-GS08 CAD Model

Description

The VEMI85AA-HGK-GS08 is an EMI filter manufactured by Vishay. These filters are designed to suppress electromagnetic interference (EMI) in various electronic devices. They play a crucial role in ensuring that devices meet regulatory compliance standards for electromagnetic compatibility (EMC).

Applications:

  • Smartphones and tablets: Filtering EMI generated by internal components.
  • Laptop computers: Reducing interference with wireless communication.
  • Automotive electronics: Protecting sensitive systems from noise.
  • Industrial equipment: Ensuring reliable operation in noisy environments.
  • Consumer electronics: Minimizing interference with other devices.

Features:

  • High attenuation: Provides significant suppression of EMI signals across a broad frequency range.
  • Compact size: Allows for easy integration into space-constrained applications.
  • Low insertion loss: Minimizes signal degradation, ensuring optimal performance.
  • High reliability: Designed for long-term, dependable operation.
  • RoHS compliant: Meets environmental regulations.

Benefits:

  • Improved EMC performance: Helps devices meet regulatory requirements for electromagnetic compatibility.
  • Reduced interference: Minimizes unwanted noise that can disrupt device operation.
  • Enhanced signal integrity: Preserves the quality of signals, ensuring accurate data transmission.
  • Increased reliability: Protects sensitive components from damage caused by EMI.
  • Simplified design: Easy to incorporate into existing circuit designs.

Additional Details:

The specific technical specifications of the VEMI85AA-HGK-GS08, such as attenuation characteristics and impedance, can be found in the Vishay datasheet for this part number. It's crucial to consult the datasheet for detailed information before implementing this filter in a design. The device is typically surface-mounted and designed for automated assembly processes. The part is lead-free and halogen-free.

Proper grounding and component placement are essential for achieving optimal EMI suppression performance. Engineers should carefully consider these factors when designing with EMI filters. Vishay provides application notes and design resources to assist engineers in properly implementing their EMI filters.
