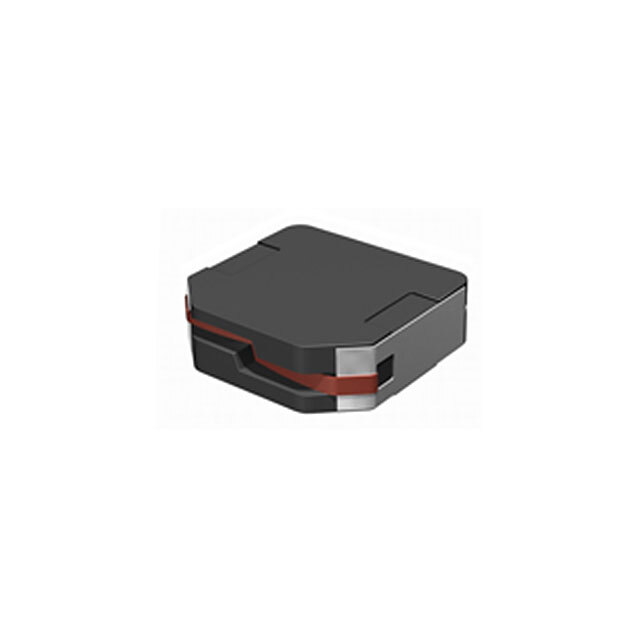

1226AS-H-4R7M=P2

Part No 1226AS-H-4R7M=P2
Manufacturer Murata Electronics North America
Catalog HOT - SALES and EOL Components
Description Inductor Power Shielded Wirewound 4.7uH 20% 100KHz Ferrite 1.6A 0.096Ohm DCR 1211 T/R / FIXED IND
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±20%
Current Rating (Amps) 1.6A
Current - Saturation 950mA
Shielding Shielded
DC Resistance (DCR) 96mOhm Max
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.126" L x 0.118" W (3.20mm x 3.00mm)
Height - Seated (Maximum) 0.059" (1.50mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 148718-1226AS-H-4R7M=P2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name DEM2815C
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin Vietnam
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian 1226AS-H-4R7M=P2 CAD Model

Description

Description of 1226AS-H-4R7M=P2

The 1226AS-H-4R7M=P2 is a cutting-edge device known for its low power draw and high reliability, suitable for both commercial and personal project needs.

Features and Benefits

  • Low power draw helping conserve energy.
  • Exceptional reliability for continuous operation.
  • Slender design facilitating easy incorporation into existing systems.

Applications and Projects

  • Wearable technology and portable devices.
  • Network and communications equipment.
  • Energy-efficient household electronics.

Engineers in need of a component that delivers both functionality and efficiency will find this product to be an optimal choice.
