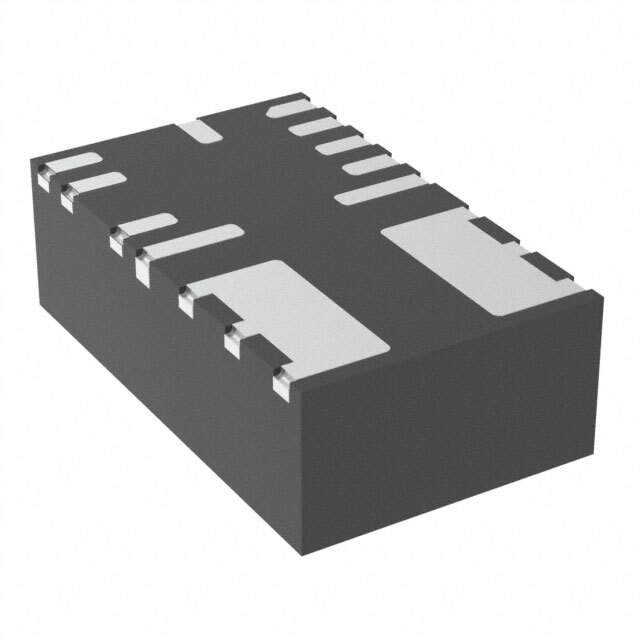

MPM3509BGQVE-AEC1-Z Real Image
Same model may have multiple batches, images only for reference.

MPM3509BGQVE-AEC1-Z

Part No MPM3509BGQVE-AEC1-Z
Manufacturer Monolithic Power Systems Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description 36V, 0.6A MODULE, SYNCHRONOUS, S / Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 34.2V 600mA 4V - 36V Input
Datasheet
MPM3509BGQVE-AEC1-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Monolithic Power Systems Inc.
Series Automotive, AEC-Q100
Package Tape & Reel
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4V
Voltage - Input (Max) 36V
Voltage - Output 1 0.8 ~ 34.2V
Current - Output (Max) 600mA
Applications ITE (Commercial)
Features Adjustable Output, Remote On/Off
Temperature Range - Operating -40°C ~ 125°C (With Derating)
Mounting Type Surface Mount, Wettable Flank
Package / Case 17-PowerLQFN Module
Dimension 0.20" L x 0.12" W x 0.06" H (5.0mm x 3.0mm x 1.6mm)
Supplier Device Package 17-QFN (3x5)
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1589-MPM3509BGQVE-AEC1-ZTR,1589-MPM3509BGQVE-AEC1-ZDKR,1589-MPM3509BGQVE-AEC1-ZCT
Standard Package 2,500
Win Source Part Number 985705-MPM3509BGQVE-AEC1-Z
Ultra Librarian 3D Model Ultra Librarian MPM3509BGQVE-AEC1-Z CAD Model

Description

The MPM3509BGQVE-AEC1-Z is a non-isolated PoL module designed for use in power supplies, particularly DC-DC converters.

  • Series: automotive, AEC-Q100
  • Features: adjustable output and remote on/off capabilities
  • Packaging: tape and reel
  • Applications: commercial ITE
  • Maximum Output Current: 600mA
  • Input Voltage Range: 4V to 36V
  • Form Factor: small, measuring 0.20" L x 0.12" W x 0.06" H (5.0mm x 3.0mm x 1.6mm)
  • Mounting: surface mountable with a wettable flank
  • Operating Temperature: -40°C to 125°C (with derating)
  • Device: supplied in a 17-PowerLQFN module with a 17-QFN (3x5) supplier device package
