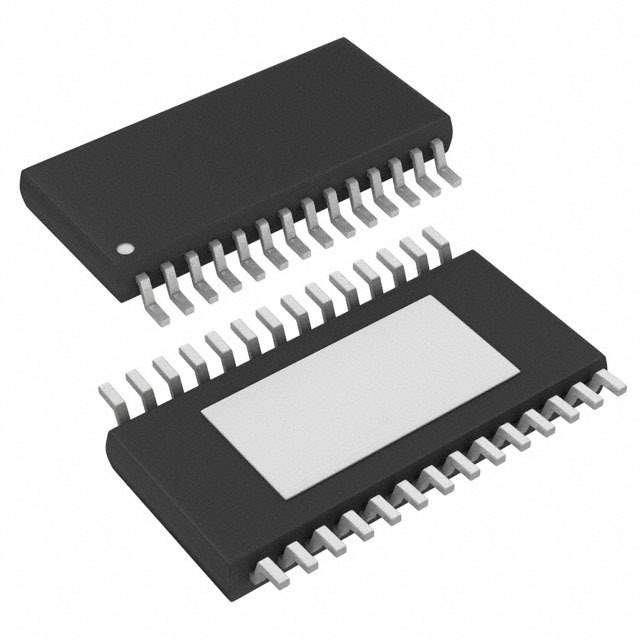

MP6539BGF-Z

Name: MP6539BGF-Z
Brand: Monolithic Power Systems Inc.
SKU: 1145304
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	MP6539BGF-Z
Manufacturer	Monolithic Power Systems Inc.
Catalog	PMIC - Gate Drivers
Description	100V, THREE-PHASE BLDC MOTOR PRE / Half-Bridge Gate Driver IC Non-Inverting 28-TSSOP-EP
Datasheet	MP6539BGF-Z Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs)>PMIC - Gate Drivers
Mfr	Monolithic Power Systems Inc.
Package	Tape & Reel
Driven Configuration	Half-Bridge
Channel Type	3-Phase
Number of Drivers	2
Gate Type	N-Channel MOSFET
Voltage - Supply	8.5V ~ 14V
Logic Voltage - VIL, VIH	0.8V, 2V
Current - Peak Output (Source, Sink)	800mA, 1A
Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	100 V
Temperature Range - Operating	-40°C ~ 125°C (TJ)
Mounting	SMD (SMT)
Package / Case	28-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package	28-TSSOP-EP
Base Product Number	MP6539
MSL Level	2A (4 Weeks)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Other Names	1589-MP6539BGF-ZDKR,1589-MP6539BGF-ZCT,1589-MP6539BGF-ZTR
Standard Package	2,500
Win Source Part Number	1145304-MP6539BGF-Z
Ultra Librarian 3D Model	Ultra Librarian MP6539BGF-Z CAD Model

Description

The MP6539BGF-Z is a 3-phase, non-inverting input type gate driver integrated circuit manufactured by Monolithic Power Systems Inc.

Driven Configuration: Half-bridge
Drivers: Two
Gate Type: N-channel MOSFET
Logic Voltage (VIL): 0.8V
Logic Voltage (VIH): 2V
Peak Output (Source): 800mA
Peak Output (Sink): 1A
Package: 28-TSSOP (0.173", 4.40mm Width) Exposed Pad
Operating Temperature Range: -40°C to 125°C (TJ)
Suitable for: PMIC - Gate Drivers
