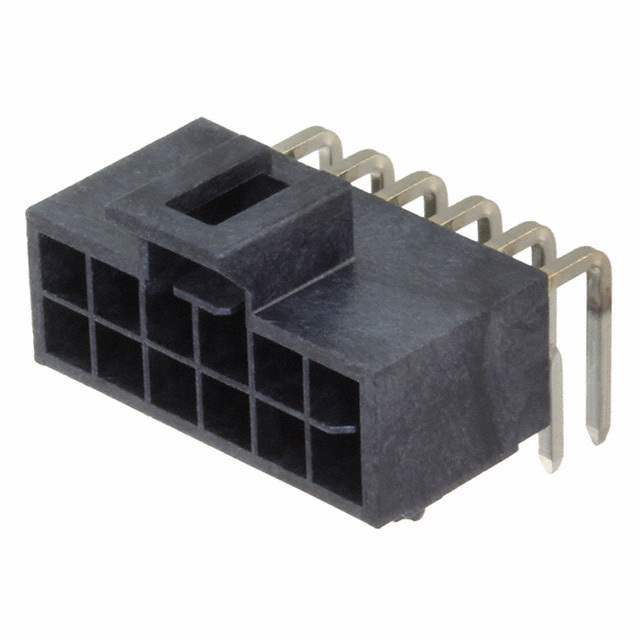

1053141212 Molex
Same model may have multiple batches, images only for reference.

1053141212

Part No 1053141212
Manufacturer MolexKits
Catalog Rectangular Connectors
Description CONN HEADER R/A 12POS 2.5MM
Datasheet
1053141212 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects >Rectangular Connectors >Headers, Male Pins
Mfr Molex
Packaging  Tray
Part Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 12
Number of Rows 2
Row Spacing - Mating 0.098" (2.50mm)
Ultra Librarian 3D Model Ultra Librarian 1053141212 CAD Model

Description

Connector Header Through Hole, Right Angle 12 position 0.098" (2.50mm)
