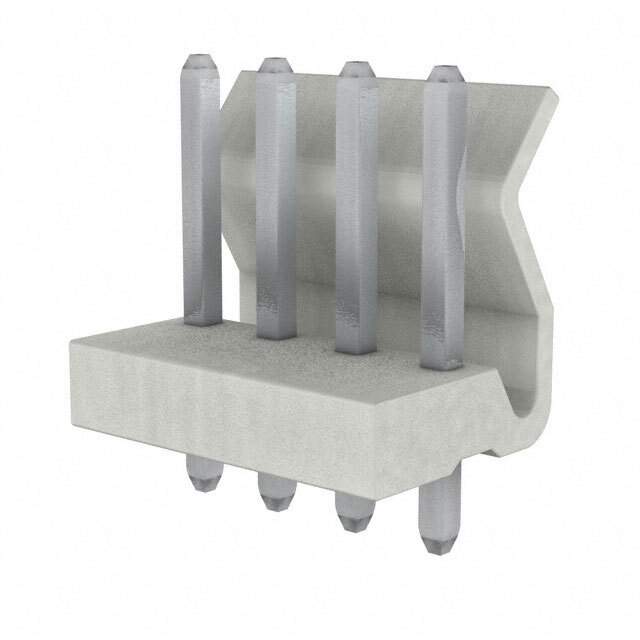

0009652048

Get a Quote

Part No	0009652048
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 4POS 3.96MM / Connector Header Through Hole 4 position 0.156" (3.96mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Molex
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.156" (3.96mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 1 Wall
Mounting	Through Hole
Termination	Solder
Fastening Type	Friction Lock
Contact Length - Mating	0.419" (10.65mm)
Contact Length - Post	0.142" (3.60mm)
Overall Contact Length	0.687" (17.45mm)
Insulation Height	0.482" (12.25mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	200.0µin (5.08µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Insulation Color	Natural
Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
Base Product Number	000965
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	9652048,09-65-2048,5273-04A,WM18825
Standard Package	6,000
Win Source Part Number	1332428-0009652048
Ultra Librarian 3D Model	Ultra Librarian 0009652048 CAD Model

Description

The Molex 1332428-0009652048 is a connector used in automotive, general purpose, industrial, medical, and telecommunications applications.

Manufacturer: Molex
Connector Type: Header
Contact Gender: Male
Positions Loaded: 4
Shrouding: Shrouded - 1 Wall
Contact Material: Brass
Contact Finish: Tin
Insulation Material: Polyamide (PA66), Nylon 6/6
Insulation Color: Natural
Pitch-Mating: 0.156" (3.96mm)
Contact Finish-Mating: Tin
Contact Finish-Mating Thickness: 200.0µin (5.08µm)
ROHS3 Compliant: Yes
High Temperature Range of Operation: Yes
Win Source Part Number: 1332428-0009652048
