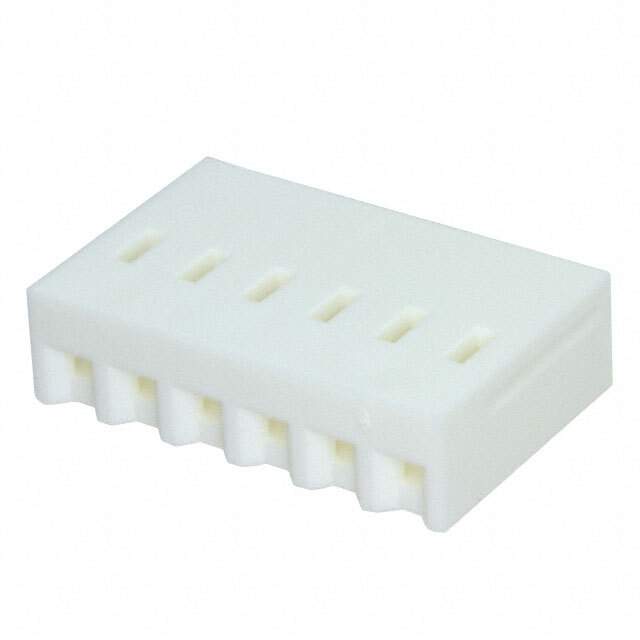

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Housings
Manufacturer Molex
Packaging Bulk
Connector Type Receptacle
Contact Type Non-Gendered
Number of Positions 6
Pitch 0.156" (3.96mm)
Number of Rows 1
Mounting Free Hanging (In-Line)
Contact Termination Crimp
Color Natural
Note Contacts Not Included
Base Product Number 000950
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number WM16228,9508060,0009508060-ND,41695NA06,09508060,0009-50-8060,000950-8060,09-50-8060
Standard Package 3,000
Win Source Part Number 1332634-0009508060
Ultra Librarian 3D Model Ultra Librarian 0009508060 CAD Model

Description

The Molex 1332634-0009508060 is a rectangular connector housing with 6 number of positions and a pitch of 0.156" (3.96mm).

  • Color: Natural
  • Connector Type: Receptacle
  • Contact Type: Non-Gendered
  • Packaging: Bulk
  • Standard Package: 3,000
  • Mounting Type: Free Hanging (In-Line)
  • ECCN: EAR99
  • Category: Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Housings
  • Contacts Included: No
  • Base Product Number: 000950
  • ROHS3 Compliant: Yes
