Same model may have multiple batches, images only for reference.

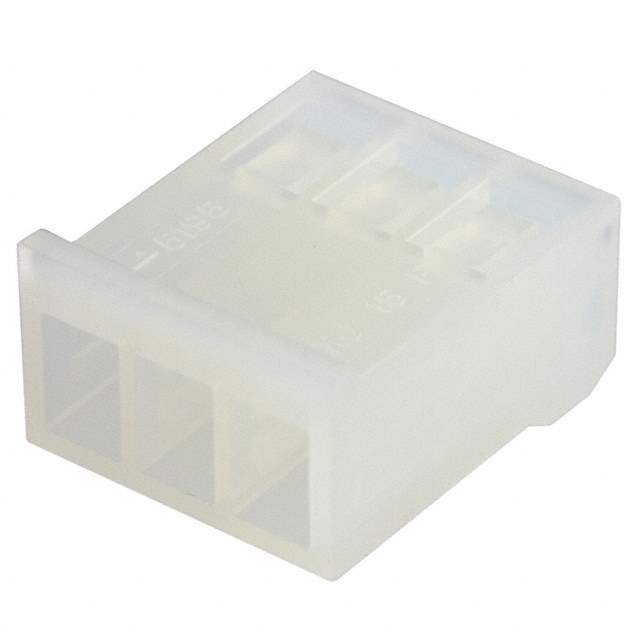

0009501031 Real Image
Same model may have multiple batches, images only for reference.

0009501031

Part No 0009501031
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN RCPT HSG 3POS 3.96MM / 3 Rectangular Connectors - Housings Receptacle Natural 0.156" (3.96mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Housings
Manufacturer Molex
Packaging Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 3
Pitch 0.156" (3.96mm)
Number of Rows 1
Mounting Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Locking Ramp
Color Natural
Note Contacts Not Included
Base Product Number 000950
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number 0009-50-1031,0009-50-1031-C,09-50-1031,0009501031-C,09-50-1031-C,9501031-C,5195-03,9501031,WM18814
Standard Package 1,000
Win Source Part Number 1332523-0009501031
Ultra Librarian 3D Model Ultra Librarian 0009501031 CAD Model

Description

The 0009501031 is a rectangular connector housing designed by Molex.

  • Type: Female Socket Receptacle
  • Fastening Type: Locking Ramp
  • Positions: 3
  • Pitch: 0.156" (3.96mm)
  • Color: Natural
  • Mounting: Free Hanging (In-Line)
  • Packaging: Bulk
  • Standard Package: 1,000
  • ROHS3 Compliant: Yes
  • MSL Level: 1 (unlimited)
