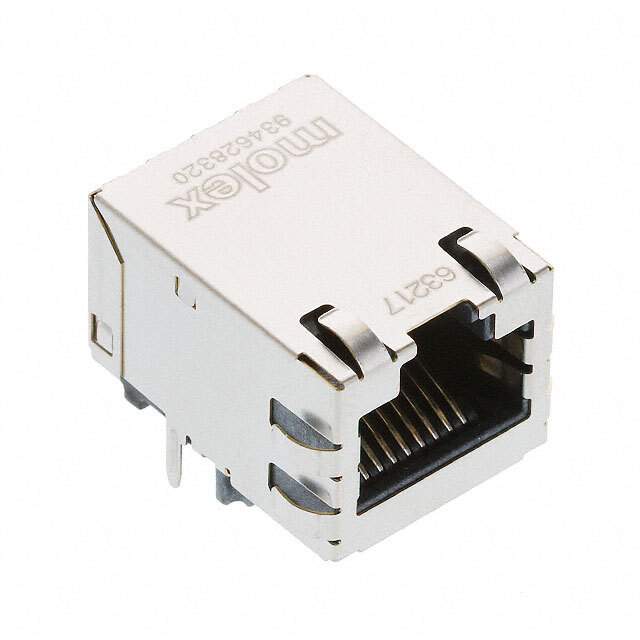

0934628320 Real Image
Same model may have multiple batches, images only for reference.

0934628320

Part No 0934628320
Manufacturer Molex, LLC
Catalog Modular Connectors
Description CONN JACK 1PORT 100 BASE-T PCB / 1 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
Datasheet
0934628320 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics
Mfr Molex
Series MXMag 93462
Package Tray
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.555" (14.10mm)
LED Color Does Not Contain LED
Number of Cores per Jack 4
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Up
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating -40°C ~ 85°C
Contact Finish Thickness 2.00µin (0.051µm)
Shield Material Brass
Housing Material Liquid Crystal Polymer (LCP)
Base Product Number 093462
Standard Package 56
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1350266-0934628320
Ultra Librarian 3D Model Ultra Librarian 0934628320 CAD Model

Description

The Molex MXMag 93462 modular connector jack with magnetics is designed for use with 10/100 Base-T and AutoMDIX applications. Molex

  • Applications: 10/100 Base-T and AutoMDIX
  • Shielded: Yes
  • EMI Protection: Yes
  • EMI Finger: Yes
  • Orientation: 90° Angle (Right)
  • Number of Ports: 1
  • Number of Cores per Jack: 4
  • Termination Type: Solder
  • Contact Finish: Gold
  • Contact Material: Phosphor Bronze
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Current Rating: 1.5A
  • Operating Temperature: -40°C to 85°C
