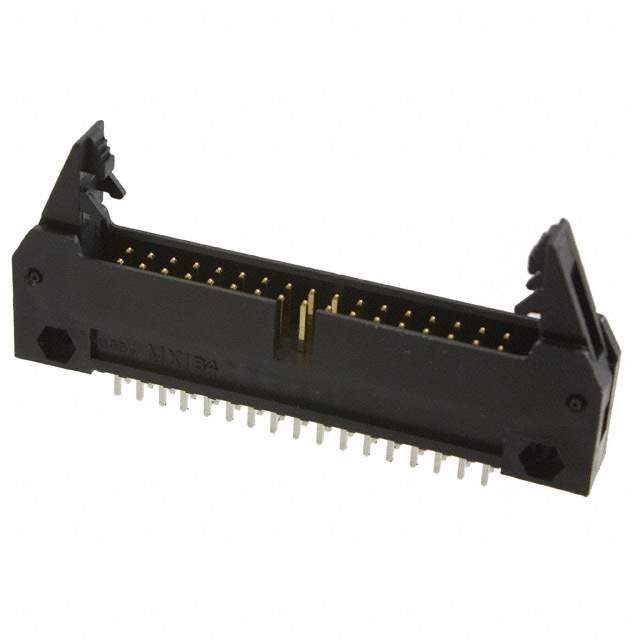

Part No 905711341
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 34POS 2.54MM VERT
Datasheet
905711341 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Series QF 50 90571
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 34
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Style Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks
Contact Length - Mating 0.228" (5.80mm)
Contact Length - Post 0.138" (3.50mm)
Overall Contact Length 0.657" (16.70mm)
Insulation Height 0.642" (16.30mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.9μin (0.10μm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyester, Glass Filled
Features Mounting Flange
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 118.1μin (3.00μm)
Win Source Part Number 766451-905711341
Popularity Medium
Supply and Demand Status Limited
Family Name 90571
Introduction Date January 01, 2000
Halogen Free Not Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian 905711341 CAD Model

Description

The Molex, LLC 766451-905711341 is a header connector that has 34 positions.

  • Positions: 34
  • Mounting Style: Through-Hole
  • Mounting Feature: Mounting Flange
  • Connector Type: Male Pin
  • Positions Loaded: All
  • Shrouding: Shrouded - 4 Wall
  • Row Spacing: 0.100" (2.54mm)
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: 3.9μin (0.10μm)
  • Contact Finish - Post: Tin
  • Contact Finish Thickness - Post: 118.1μin (3.00μm)
  • Supply and Demand: Limited
  • Alternative Parts: 90663-1341
