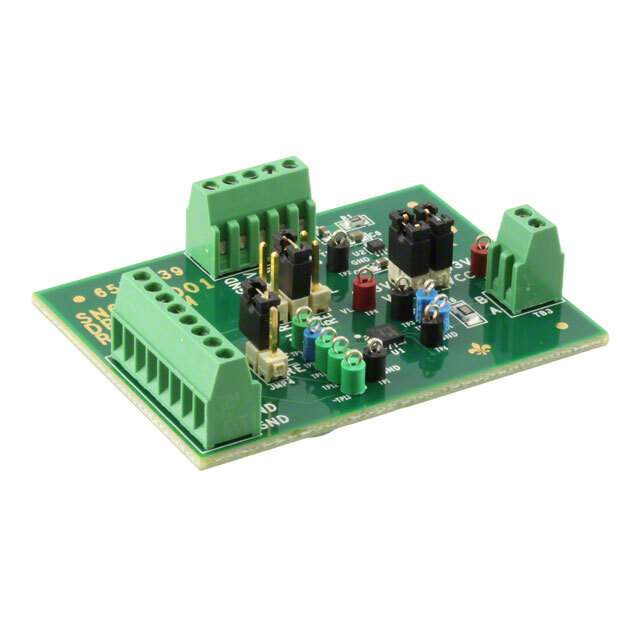

The SN65HVD01-EVM from Texas Instruments is a comprehensive evaluation module designed to assist engineers and developers in the rapid prototyping and testing of their designs using the SN65HVD01 RS-485 transceiver. This evaluation module is an essential tool for anyone looking to integrate robust data communication capabilities into their industrial, automotive, or telecommunications applications.

Key Features

• Integrated Transceiver: The SN65HVD01-EVM includes the SN65HVD01 transceiver, which is capable of differential data transmission over an RS-485 network, providing high-speed communication up to 1 Mbps.
• Bus-Pin ESD Protection: The transceiver on the EVM offers an impressive Electrostatic Discharge (ESD) protection for bus pins, ensuring the longevity and reliability of the device in harsh environments.
• Wide Common-Mode Range: The device is designed to operate over a wide common-mode range, which makes it suitable for multi-point applications over long cable runs.
• Flexible Power Supply: The EVM can be powered by a wide range of supply voltages, accommodating various application requirements.
• Easy-to-Use Interface: With clearly marked test points and connectors, the evaluation module provides a user-friendly interface for quick setup and testing.

Applications

The SN65HVD01-EVM is ideal for a variety of applications that require reliable data communication, including:

• Industrial control systems
• Building automation
• Networked security cameras
• Automotive diagnostics and infotainment systems
• Telecommunication infrastructure

Design and Development Support

The evaluation module comes with extensive support materials provided by Texas Instruments, including datasheets, application notes, and design guides. This ensures that engineers have all the necessary information to successfully incorporate the SN65HVD01 transceiver into their projects. Additionally, Texas Instruments offers technical support and an online community where users can share insights and ask questions, further aiding the design process.

With its robust feature set and comprehensive support, the SN65HVD01-EVM is an invaluable tool for any professional looking to implement RS-485 communication protocols in their designs.
