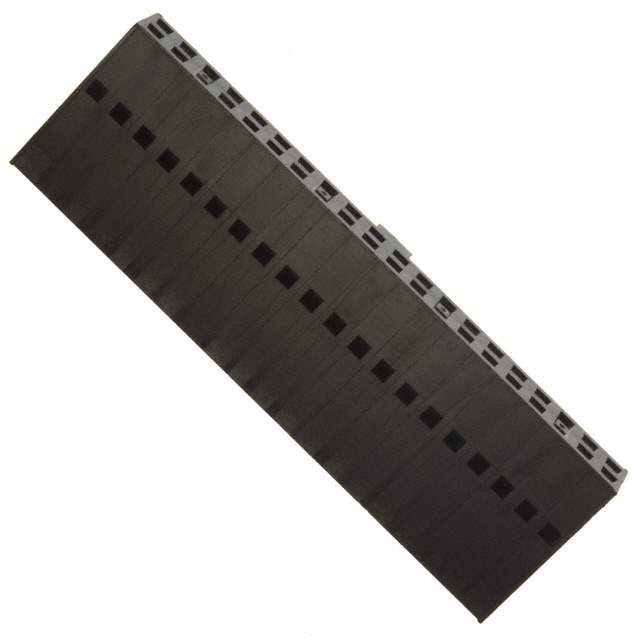

90142-0040 Real Image
Same model may have multiple batches, images only for reference.

90142-0040

Part No 90142-0040
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description 2.54mm Pitch C-Grid III Crimp Housing Dual Row, 40 Circuits, Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Gender Female
Country of Origin US
Current Rating 3 A
Depth 15.24 mm
Flammability Rating UL94 V-0
Gender Receptacle
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Housing Color Black
Housing Material PPO
Lead Free Lead Free
Length 50.8 mm
Max Operating Temperature 105 °C
Max Voltage Rating (DC) 350.35 kV
Min Operating Temperature -55 °C
Mount Cable
Number of Contacts 40
Number of Pins 40
Number of Positions 40
Number of Rows 2
Orientation Straight
Packaging Bulk
Pitch 2.54 mm
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Schedule B 8536695050, 8536695050
Termination Crimp
Width 7.72 mm
Win Source Part Number 1217217-90142-0040
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 90142-0040 CAD Model

Description

The Molex 1217217-90142-0040 is a crimped receptacle connector.

  • Positions: 40
  • Rows: 2
  • Current Rating: 3 A
  • Length: 50.8 mm
  • Width: 7.72 mm
  • Contacts: 40
  • Gender: Female
  • Mounting: Cable
  • RoHS Compliant: Yes
  • Flammability Rating: UL94 V-0
  • Lead-Free: Yes
