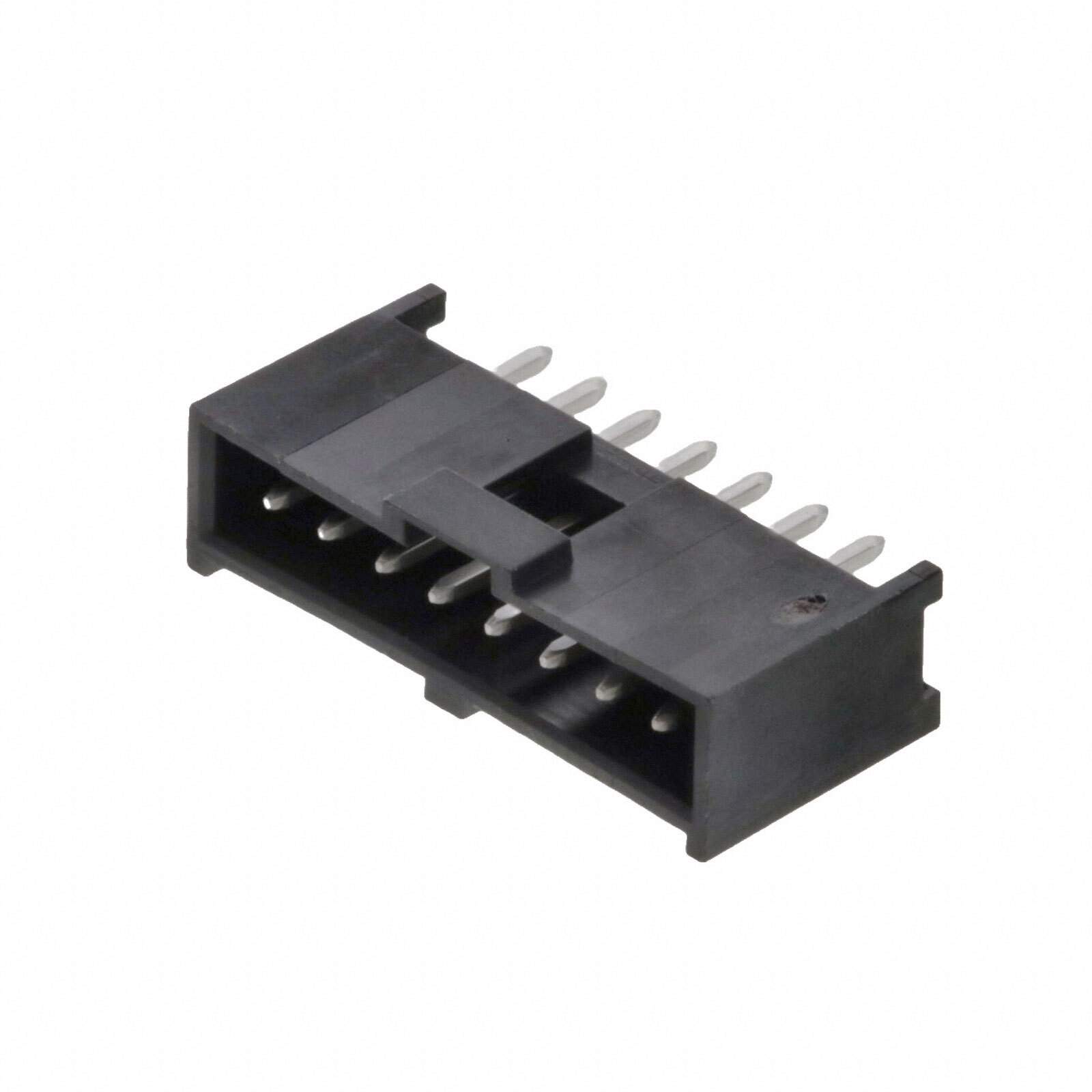

Same model may have multiple batches, images only for reference.

0901361108

Get a Quote

Part No	0901361108
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 8POS 2.54MM / Connector Header Through Hole 8 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Molex
Packaging	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	8
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.266" (6.75mm)
Contact Length - Post	0.114" (2.90mm)
Overall Contact Length	0.510" (12.95mm)
Insulation Height	0.429" (10.90mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	118.1µin (3.00µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Applications	Automotive, General Purpose
Base Product Number	90136
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	23-0901361108,WM8219-ND,WM8219,90136-1108,901361108
Standard Package	1
Win Source Part Number	1332452-0901361108
Ultra Librarian 3D Model	Ultra Librarian 0901361108 CAD Model

Description

This is an 8-position header connector from Molex with a latch holder fastening type.

Manufacturer: Molex
Positions: 8
Fastening Type: Latch Holder
Contact Type: Male Pin
Positions Loaded: All
Rows: 1
Termination: Solder
Contact Material: Brass
Pitch-Mating: 0.100" (2.54mm)
Contact Finish-Mating: Tin
Contact Finish Thickness: 118.1µin (3.00µm)
Mounting Type: Through-Hole
Application: Rectangular Connectors
Applications: Automotive and General Purpose
