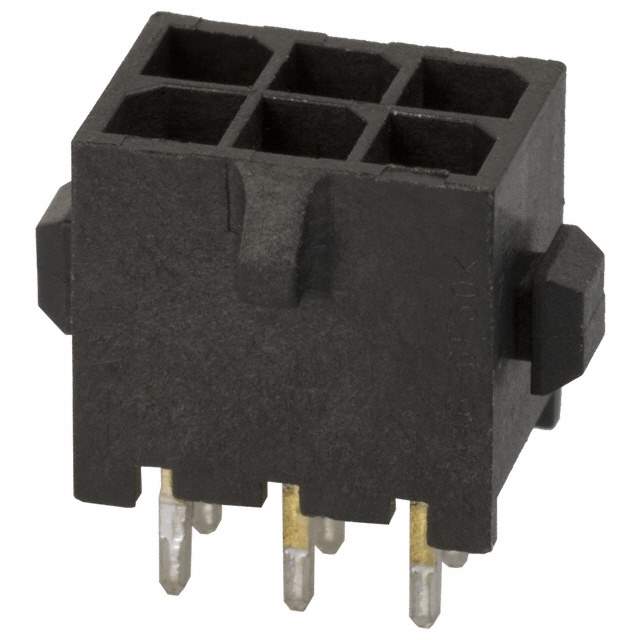

3-794632-6 Real Image
Same model may have multiple batches, images only for reference.

3-794632-6

Part No 3-794632-6
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 6POS 3MM / Connector Header Through Hole 6 position 0.118" (3.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 6
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Press-Fit, Solder
Fastening Type Locking Ramp
Contact Length - Post 0.125" (3.18mm)
Insulation Height 0.364" (9.25mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250V
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications General Purpose
Base Product Number 794632
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A34893,2266-3-794632-6,37946326
Standard Package 286
Win Source Part Number 1334253-3-794632-6
Ultra Librarian 3D Model Ultra Librarian 3-794632-6 CAD Model

Description

The TE Connectivity AMP Connectors 794632-6 header is a male pin connector designed for use in general purpose applications.

  • Packaging: Tray
  • Rows: Two
  • Positions: Six
  • Termination: Press-fit and solder
  • Fastening Type: Locking ramp
  • Voltage Rating: 250V
  • Contact Material: Brass
  • Operating Temperature: -40°C to 105°C
  • ECCN: EAR99
